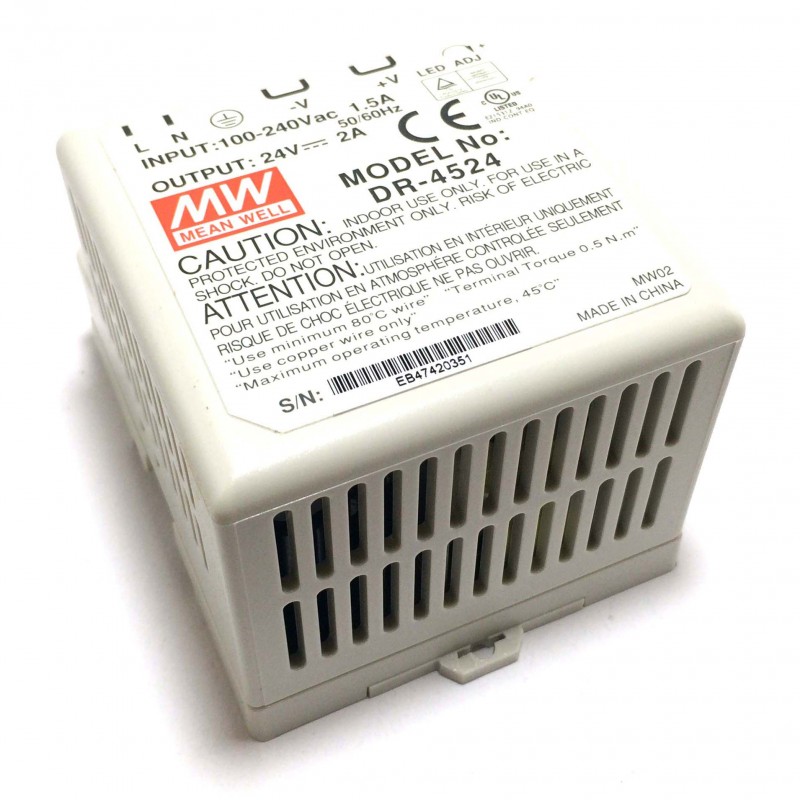

MEAN WELL Switching Power Supplies Series: DR-4524
Series: DR-45 DIN-Rail Assembly, Single Output Output: 25 to 48W
• Direct assembly on DIN Rail
• Enclosed case, Touch-guard screw terminals
• Universal input
• Overload protection, current limiting, auto recovery
• Protections: short circuit/over load/over voltage
• Power-on LED display
• Insulation Class I |
 |
|
| |
|
| Input Voltage: |
85…264V AC (47…63Hz) |
| 120…370V DC |
| Input Inrush Current, Max.: |
56A |
| Leakage Current, Max.: |
1mA |
| Output Voltage Adjustment: |
±10% |
| Over Load Protection: |
105…150% |
| Withstand Voltage |
| I/P-O/P: |
3000V AC |
| I/P-FG: |
1500V AC |
| O/P-FG: |
500V AC |
| Operating Temperature: |
-10…+50°C |
| Weight: |
310g |
| I/P = Input, O/P = Output, FG = Frame Ground
|
|
| |
|
|
|
|
|
|
| Part Nr. |
UA |
IA |
PA |
DUA |
URN |
h |
| |
[V] |
[A] |
[W] |
[%] |
[mVp-p] |
[%] |
| DR-4505 |
5 |
0…5 |
25 |
2 |
100 |
72 |
| DR-4512 |
12 |
0…3,5 |
42 |
1 |
200 |
77 |
| DR-4515 |
15 |
0…2,8 |
42 |
1 |
240 |
77 |
| DR-4524 |
24 |
0…2 |
48 |
1 |
480 |
80 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency |
|
| Note |
| These power supplies are considered as a component that has to be installed in a final equipment. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
|
 |
 |
