Description
Discontinued

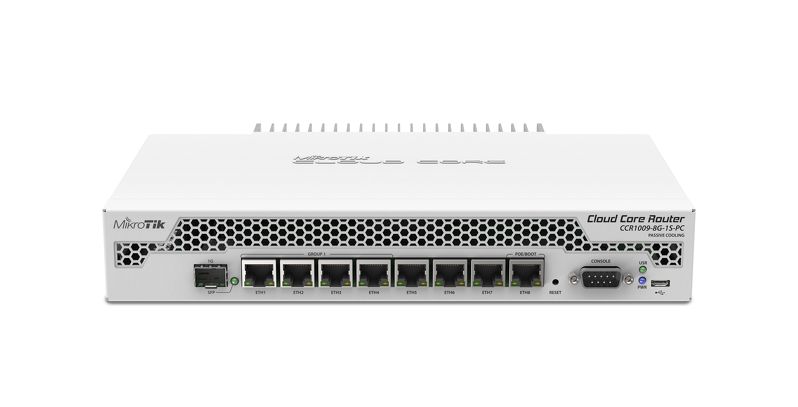

Our popular 9-core Cloud Core Router is now available in a new passive cooling enclosure. This CCR1009 unit is equipped with two heat-pipes and a specially designed heat-sink, so its completely silent.
The unit is powered by an external 24v 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.
Specifications
| Details |
| Product code |
CCR1009-8G-1S-PC |
| Architecture |
TILE |
| CPU |
TLR4-00980 |
| CPU core count |
9 |
| CPU nominal frequency |
1 GHz |
| Dimensions |
272x190x47mm |
| License level |
6 |
| Operating System |
RouterOS |
| Size of RAM |
1 GB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-20°C to 60°C |
| Suggested price |
$425.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
14-57 V |
| Number of DC inputs |
2 (PoE-IN, DC jack) |
| DC jack input Voltage |
14-57 V |
| Max power consumption |
34 W |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
8 |
Fiber
Peripherals
| Details |
| Serial port |
RS232 + Header |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
microUSB type AB |
| Max USB current (A) |
1 |
Other
| Details |
| CPU temperature monitor |
Yes |
| Current Monitor |
Yes |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
