CSS326-24G-2S+RM

SKU: 1010190004080 Categories: , ,

136.00

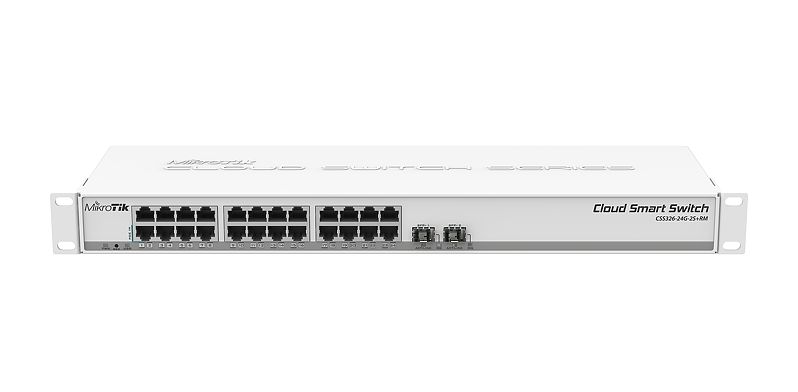

MikroTik Cloud Smart Switch 326-24G-2S+RM – SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports in 1U rackmount case

6 in stock

Description

CSS326-24G-2S+RM

Cloud Smart Switch 326-24G-2S+RM is SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports in 1U rackmount case that provides wire speed connectivity with several new switching features.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

Product specifications

Details
Product code CSS326-24G-2S+RM
10/100/1000 Ethernet ports 24
Power Jack 1
PoE in Yes
Supported input voltage 8 V – 30 V
Dimensions 440 x 144 x 44 mm
Operating System SwOS
Tested ambient temperature -40°C .. +70°C
Max Power consumption 19W
SFP+ ports 2
Storage type FLASH
Storage size 2 MB
Suggested price $139

Switching results

CSS326-24G-2S+RM
Mode Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Switching Non blocking Layer 2 throughput 65,476.2 33,523.8 10,338.3 42,345.9 3,576.1 43,427.8
Switching Non blocking Layer 2 capacity 65,476.2 67,047.6 10,338.3 84,691.7 3,576.1 86,855.7
Switching Non blocking Layer 1 throughput 65,476.2 44,000.0 10,338.3 44,000.0 3,576.1 44,000.0
Switching Non blocking Layer 1 capacity 65,476.2 88,000.0 10,338.3 88,000.0 3,576.1 88,000.0

Additional information

Weight 2.1000 kg
Brand

Mikrotik
