RB/952Ui-5ac2nD-TC / hAP ac lite TC

49.00

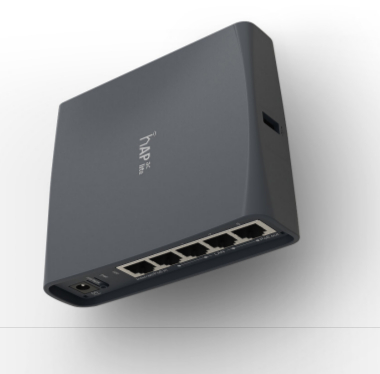

MikroTik – RB952Ui-5ac2nD-TC – hAP ac lite TC – Dual-Concurrent 2.4/5GHz AP, 802.11ac, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support, universal tower case

Out of stock

Description

The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.

Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

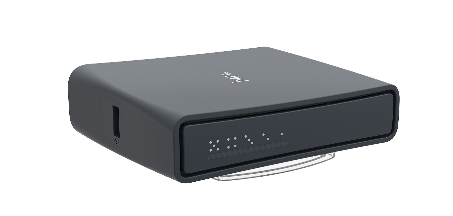

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

We have one version available – RB952Ui-5ac2nD-TC (International). RB952Ui-5ac2nD-TC (International) supports 2412-2484MHz and 5150MHz – 5875MHz range (Specific frequency range can be limited by country regulations).

Specifications

Details
Product code RB952Ui-5ac2nD-TC
Architecture MIPSBE
CPU QCA9Mikrotik Technical Support1
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 34 x 119 x 98mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -30°C to 70°C
Suggested price $49.95

Powering

Details
PoE in Passive PoE
PoE out Passive PoE
PoE in input Voltage 10-28 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-28 V
Max out per port output (input < 30 V) 500 mA
Max total out (A) 500 mA
Max power consumption 8 W

Wireless

Details
AC speed AC750
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz standards 802.11b/g/n
Wi-Fi generation 5
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 5 GHz Max data rate 433 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz chip model QCA9Mikrotik Technical Support1
Wireless 5 GHz number of chains 1
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2
Wireless 5 GHz chip model QCA9887

Ethernet

Details
10/100 Ethernet ports 5

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -96
11MBit/s 22 -89
6MBit/s 20 -93
54MBit/s 18 -74
MCS0 20 -93
MCS7 16 -71
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 23 -93
54MBit/s 20 -75
MCS0 23 -93
MCS7 19 -71
MCS9 16 -63

Additional information

Weight 0.4000 kg
Brand

Mikrotik
