LHG-5HPnD - LHG HP5

Sku:1010190088012

MikroTik -  MikroTik - LHG-5HPND - Dual chain High Power 24.5dBi 5GHz CPE/Point-to-Point Integrated Antenna

59,00 €

Availability from date: 30 ottobre 2020

Incoming Quantity: 10

  • Buy 5 for 58,00 € each and save 2%
  • Buy 10 for 57,00 € each and save 4%
  • Buy 20 for 56,00 € each and save 6%
  • Buy 50 for 55,00 € each and save 7%

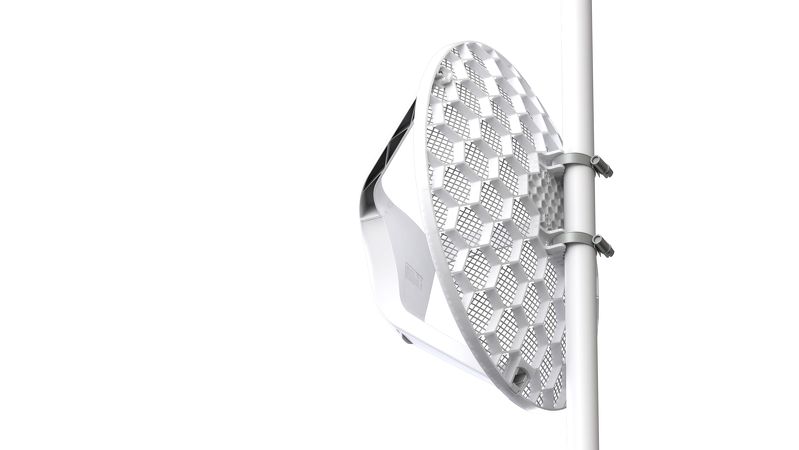

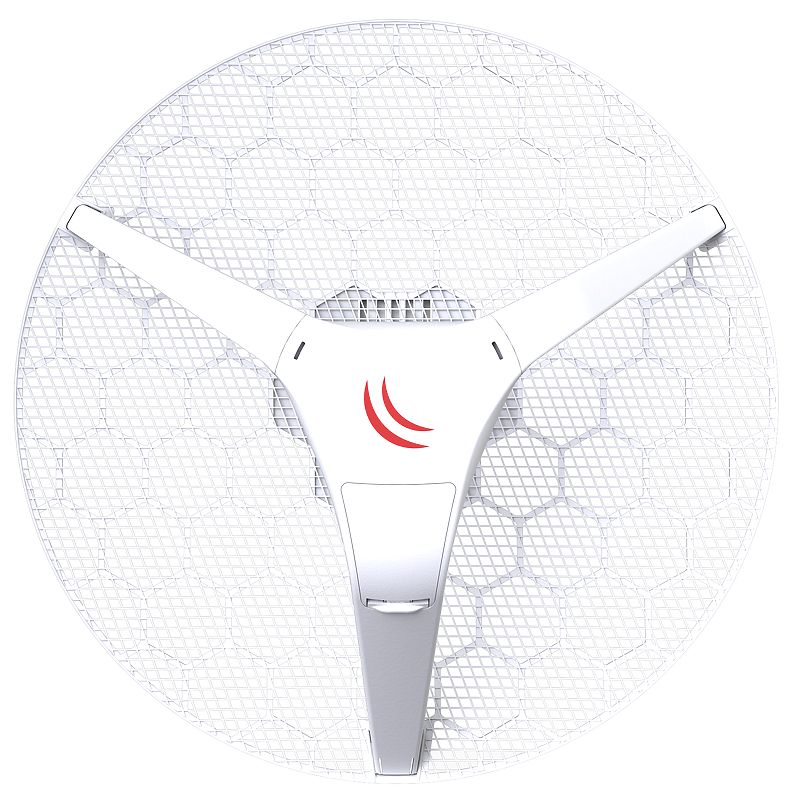

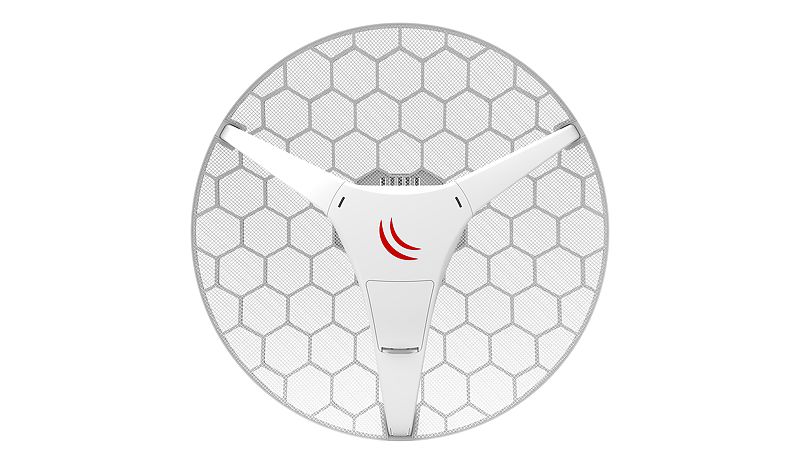

The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna. LHG HP5 comes with two times more output power than our regular LHG 5, and is designed to reach up to 60% longer distances.

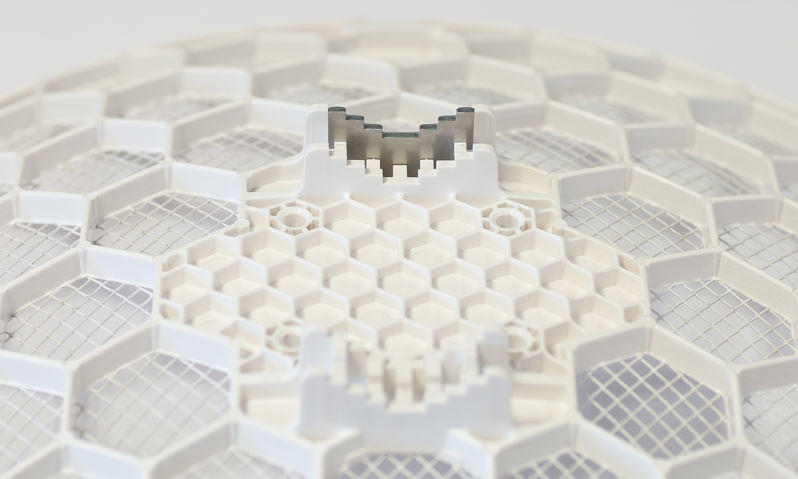

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.



LHG HP5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).



Specifications

Details
Product code RBLHG-5HPnD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions Ø 391 x 222 mm;
License level 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Suggested price $69.00


Powering

Details
PoE in Passive PoE
PoE in input Voltage 10-28 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 7 W


Wireless

Details
Wireless 5 GHz number of chains 2
Antenna gain dBi for 5 GHz 24.5


Ethernet

Details
10/100 Ethernet ports 1


Wireless specifications

5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s 28 -96
54MBit/s 25 -80
MCS0 28 -96
MCS7 24 -75

Ethernet test results

RBLHG-5HPnD AR9344 100M 1 port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 8.1 98.4 23.5 96.3 148.0 75.8
Bridging 25 bridge filter rules 8.1 98.4 23.5 96.3 87.6 44.9
Routing none (fast path) 8.1 98.4 23.5 96.3 148.0 75.8
Routing 25 simple queues 8.1 98.4 23.5 96.3 106.6 54.6
Routing 25 ip filter rules 8.1 98.4 23.5 96.3 60.5 31.0
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results





Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

- Summer Promo - No
Brand Mikrotik
Frequency 5 Ghz
Features (Beta) No
Applications Outdoor
