Description

Mikrotik RB/wAP2nD-BE black Access Point wall

wAP

The wAP (wall AP) is a small weatherproof wireless access point for your mobile devices, perfect for installation outside your house, in the garden, on your porch or
anywhere else where you need wireless access from your phone or computer.

The device has one 10/100 Ethernet port and can be mounted on a wall to provide basic internet access in any location. It looks unobtrusive and sleek, available in two
colours – black (RBwAP2nD-BE) and white (RBwAP2nD).

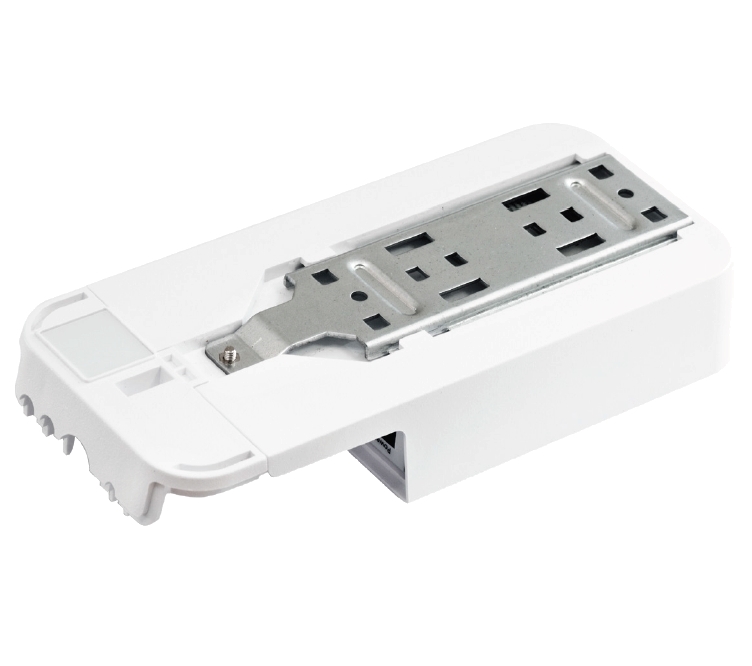

It is waterproof and can be attached to any external wall from the inside of the case – so that it is not easy to detach from it’s mounting location. The bottom door can also be secured with a special screw, which can only be opened by the owner.

It is also possible to run the Ethernet cable directly behind the unit, to inside the wall, there is a special opening on the back of the case. This way, the unit doesn’t attract attention and blends into any environment.



Specifications

wAP

Product code RBwAP2nD (white), RBwAP2nD-BE (black)

CPU nominal frequency 650 MHz

CPU core count 1

Size of RAM 64 MB

10/100 Ethernet ports 1

Wireless Built-in 2.4 GHz 802.11b/g/n, dual-chain

Antenna gain 2 dBi

Antenna beam width 360°

Wireless chip model QCA9Mikrotik Technical Support1-AL3A

PoE in Yes

Supported input voltage 11 V – 57 V (Passive PoE and 802.3af/at with unshielded cable)

Dimensions 185 x 85 x 30 mm

License level 4

Operating System RouterOS

CPU QCA9Mikrotik Technical Support1-AL3

Max Power consumption 4 W

Wireless specifications

RATE Tx (dBm) Rx (dBm)

1MBit/s 22 -96

11MBit/s 22 -89

6MBit/s 20 -93

54MBit/s 18 -74

MCS0 20 -93

MCS7 16 -71
