Description
Discontinued

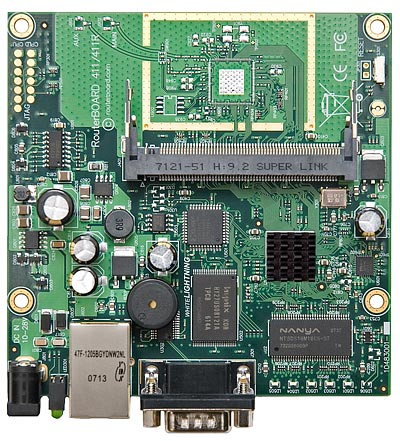

The RB411AH is designed with size and cost in mind. This small device will fit perfectly into small AP, CPE devices or run your wireless backup link. The powerful 680MHz Atheros CPU gives it the ability to do all of this and more.
The RB411AH includes RouterOS – the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.
Specifications
| Details | |
|---|---|
| Product code | RB411AH |
| Architecture | MIPSBE |
| CPU | AR7161 |
| CPU core count | 1 |
| CPU nominal frequency | 680 MHz |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 64 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $99.00 |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-28 V |
| Max power consumption | 14 W |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Peripherals
| Details | |
|---|---|
| MiniPCI slots | 1 |
| Serial port | RS232 |
Other
| Details | |
|---|---|
| Voltage Monitor | Yes |
