Description

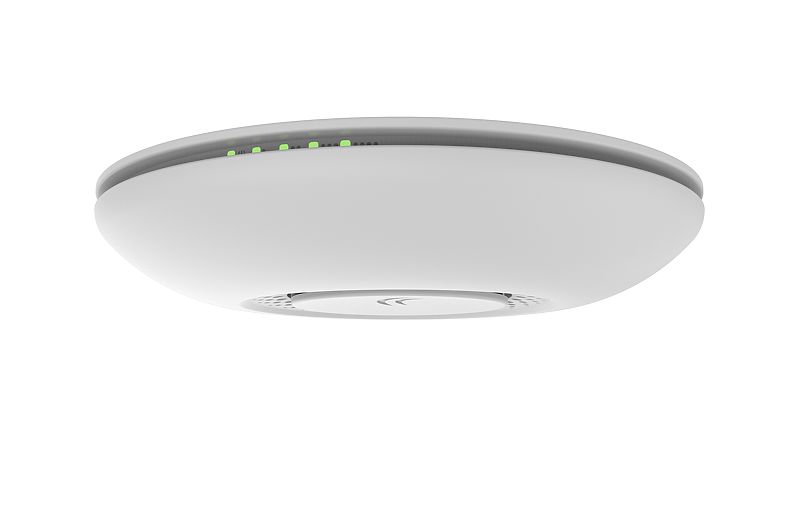

RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.
cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.
Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.
Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.
Specifications
| Details | |
|---|---|
| Product code | RBcAP2nD |
| Architecture | MIPSBE |
| CPU | QCA9Mikrotik Technical Support3 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Dimensions | 185mm diameter, 31mm height |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $49.95 |
Powering
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE in input Voltage | 11-57 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 4 W |
Wireless
| Details | |
|---|---|
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wi-Fi generation | 4 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz chip model | QCA9Mikrotik Technical Support3 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 22 | -96 |
| 11MBit/s | 22 | -89 |
| 6MBit/s | 20 | -93 |
| 54MBit/s | 18 | -74 |
| MCS0 | 20 | -93 |
| MCS7 | 16 | -71 |
