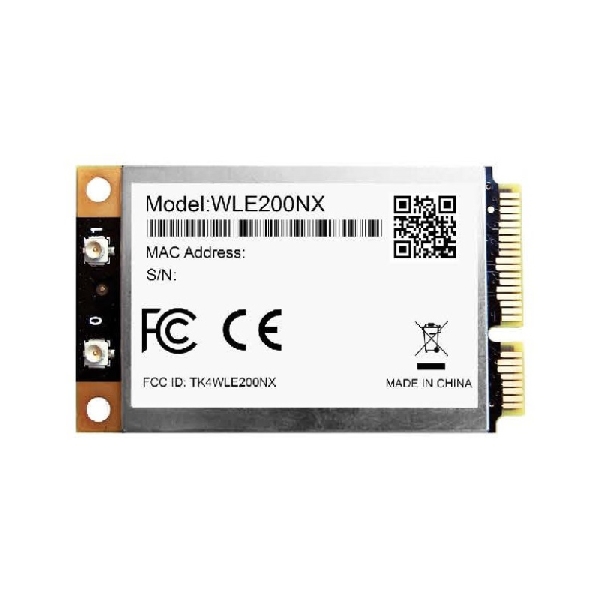

Description
- Qualcomm Atheros AR9280
- Atheros XB92 Reference Design
- Dual-band 2×2 MIMO spatial multiplexing technique
- 2.4GHz max 18dBm & 5GHz max 17dBm output power (per chain)
- IEEE 802.11n compliant & backward compatible with 802.11b/g
- 2×2 MIMO Technology, up to 300Mbps for each band
- Mini PCI Express edge connector
- Supports WPA2 encryption (IEEE 802.11i) and 802.1X authentication
- Supports Transmit Power Control (IEEE 802.11h)
- Dynamic Frequency Selection (DFS)
- Supports additional regulatory domains (IEEE 802.11d)
- Industrial Grade Option Available
SPECIFICATIONS TABLE
| PRODUCT TYPE | Wireless Module |
|---|---|
| CHIPSET | AR9280 |
| WIRELESS STANDARD | 802.11n, 802.11g, 802.11b, 802.11a |
| MIMO CHANNELS | 2×2 |
| OUTPUT (PER CHAIN) | 18dBm@2.4GHz, 17dBm@5GHz |
| WIRELESS SPEED | 300Mbps |
| FREQUENCY RANGE | 2.412 ~ 2.484 GHz, 5.150 ~ 5.875 GHz |
| INTERFACE | 1x MiniPCI-e Pin, 2x U.FL Connector |
| MINIPCI-E PIN | v1.1 |
| POWER CONSUMPTION | 3.7W (Max) |
| TEMPERATURE RANGE | Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC |
| HUMIDITY | Operating:5% to 95% (non-condensing) |
| CERTIFICATION | CE, FCC, REACH and RoHS Compliance |
| DIMENSION (W X H X D) | 30 mm x 50.9mm x 3.2 mm |
| 2.4GHZ (PER CHAIN) | |||
|---|---|---|---|
| Data Rate | TX(dBm) | RX(dBm) | |
| 802.11b | 1Mbps | 18 | -94 |
| 11Mbps | 18 | -92 | |
| 802.11g | 6Mbps | 17 | -94 |
| 54Mbps | 15 | -79 | |
| 11n HT20 | MCS0 | 17 | -94 |
| MCS 7 | 10 | -73 | |
| 11n HT40 | MCS0 | 17 | -90 |
| MCS 7 | 9 | -72 | |
| 5GHZ (PER CHAIN) | |||
|---|---|---|---|
| Data Rate | TX (dBm) | RX (dBm) | |
| 802.11a | 6Mbps | 17 | -94 |
| 54Mbps | 12 | -77 | |
| 11n HT20 | MCS0 | 17 | -93 |
| MCS 7 | 9 | -74 | |
| 11n HT40 | MCS0 | 17 | -90 |
| MCS 7 | 9 | -73 | |
