OLED Yellow and Blue Display 0.96"

Sku:1010150500105

Tinycontrol - OLED Yellow and Blue Display 0.96" - TB 1WIRE I2C OLED RTC EXPANSION
9,58 €

Availability: In stock

  • Buy 5 for 8,78 € each and save 9%
  • Buy 10 for 7,99 € each and save 17%
  • Buy 20 for 7,19 € each and save 25%

Basic expansion board tB.
Available in three versions:
1.  I2C and  1wire splitter: 2xRJ12 i 6x 1wire

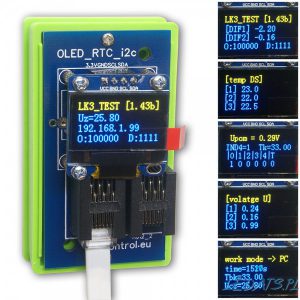

2. splitter as above and  OLED 0.96″ display
3. as above and real time clock module with battery.


Clock chip is powered by 3V battery (mounted permanently).
Display module is easy replaceable, delivered not mounted.
Communication with Lan Controller v3 by I2C bus.
Connection by 6wire flat  cable (included) to INP6 input of LKv3 and one of RJ12 socket on expansion boards.
Second socket can be used for other sensor (1wire or I2C) connection.


Clock and display setting described in manual.





Technical data:

  •  RTC DS3231 accu0racy 0 °C to +40 °C: +/- 2 ppm
  •  OLED 0.96″ 128×64, number of lines – 4
  •  4 pins connector (for OLED): 3,3V, GND, SCL, SDA
  •  1wire bus inputs – 6pcs , pins: GND, 1w, 5V
  •  power: from I2C bus – 3.3V
  •  PCB holder size: 66mm x 36mm x 18mm
  •  optional DIN mounting: YES
