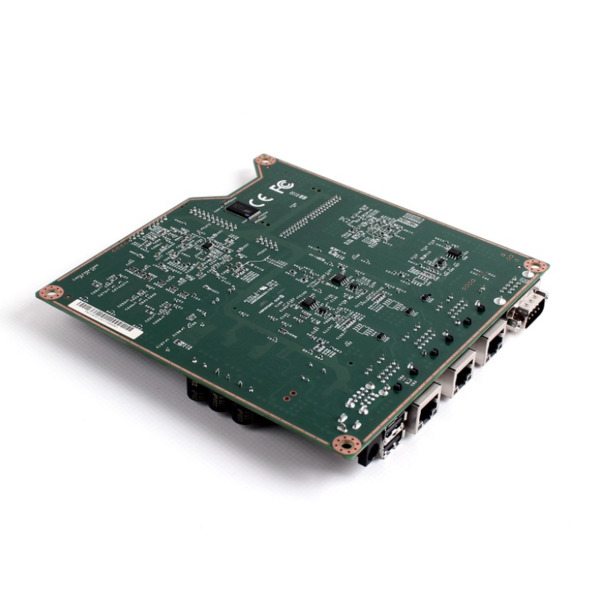

ALIX 2F13 - PC ENGINES

Sku:1010189003017

PC Engines - Alix - 256MB SYSTEM BOARD - PC Engines offers small, low power servers for your network security, wireless networking, or embedded applications.
94,40 €

Availability: In stock

  • Buy 5 for 93,40 € each and save 2%
  • Buy 10 for 92,40 € each and save 3%
  • Buy 20 for 91,40 € each and save 4%

NEW VERSION OF ALIX 2e13

 PLEASE BE CAREFUL: THIS BOARD NEED AN INPUT OF 18V, PLEASE CONSIDER TO USE THE TW-AC18

Status Active, but not recommended for new designs.
Part numbers alix2d3 = 3 LAN / 1 miniPCI / LX800 / 256 MB / USB (EOL)
alix2d13 = same, added battery, I2C header, COM2 header, internal USB header (EOL)
alix2e13 = same, added battery, I2C header, COM2 header, internal USB header (EOL, available while stock lasts)
alix2f13 = same, added battery, I2C header, COM2 header, internal USB header (active product)
alix2d19 = same as alix2d13, but 128 MB DRAM (EOL)
Spec
  • CPU: 500 MHz AMD Geode LX800
  • DRAM: 256 MB DDR DRAM (128 MB on alix2d19)
  • Storage: CompactFlash socket, 44 pin IDE header
  • Power: DC jack or passive POE, min. 7V to max. 20V
  • Three front panel LEDs, pushbutton
  • Expansion: 1 miniPCI slot, LPC bus
  • Connectivity: 3 Ethernet channels (Via VT6105M 10/100)
  • I/O: DB9 serial port, dual USB port
  • Board size: 6 x 6" (152.4 x 152.4 mm) - same as WRAP.1E
  • Firmware: tinyBIOS
Customer options I2C bus, buzzer, RTC battery
ALIX.2F changes from ALIX.2E
  • Change VCORE regulator enable to EN3 (ECN 063).
ALIX.2E changes from ALIX.2D
  • Many passive components changed to current mainstream sizes for better availability.
  • Power system changed to use contemporary components.
  • Common-mode choke added on DC input for lower EMI.
  • Various touch-ups to reduce EMI.
ALIX.2D changes from ALIX.2C
  • Increase USB current limit.
  • USB headers as build option.
  • USB ports 3 and 4 on header (not tested).
  • Change optional serial header J12 to COM2.
  • Add LED and switch pins to I2C header.
  • Populate buzzer driver circuit, add pins for use as GPIO.
  • Add option for power in header J18.
  • Some enhancements to reduce EMI.
  • Add second POSCAP to ruggedize 3.3V rail for high power radio cards.
Manufacturer PC Engines
Origin Taiwan
Support info ALIX.2 series
Schematic PDF
