Description

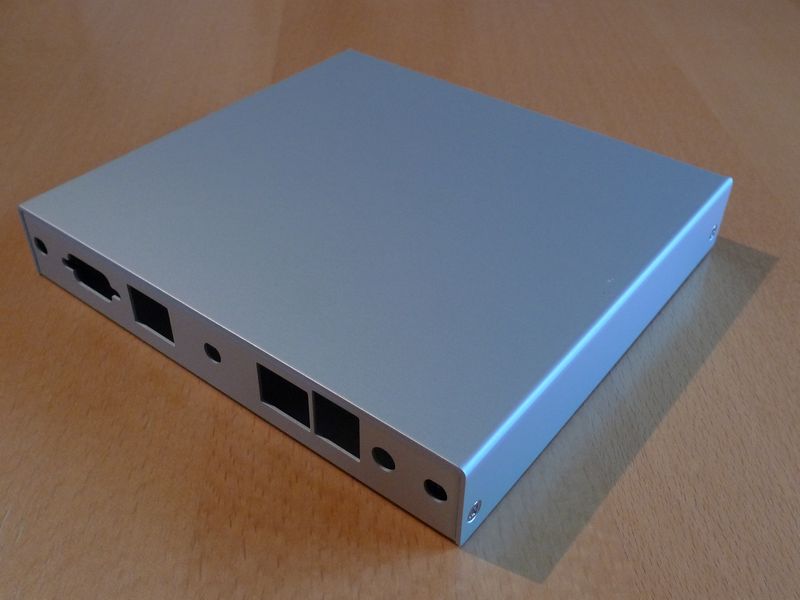

Enclosure 2 LAN USB
Designed for ALIX.2* boards. Cutouts for 3 LEDs and 1 switch in front, cutouts for DB9, 2 or 3 LAN, 3 or 2 SMA connectors, DC jack in back. Enclosure made of anodized or painted aluminum. Dimensions 168 mm wide x 157 mm deep x 30 mm high. RoHS compliant.
Changes from case1c* Countersunk screws for the top cover, prethreaded base.
More antenna holes
Optional wall mount bracket
Front is part of the top cover, i.e. no need to disassemble everything to change the CF card.
Please note that this enclosure is a bit wider and taller than case1c* to accomodate the added antenna holes.
Includes 4 screws to mount system board, 4 screws to close enclosure, 4 self-adhesive feet, 2 or 3 rubber plugs to close unused SMA holes.
