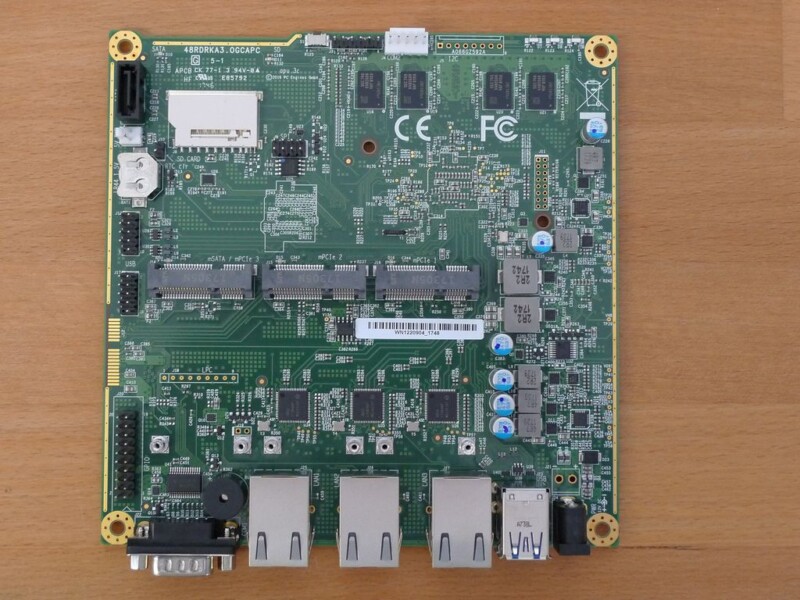

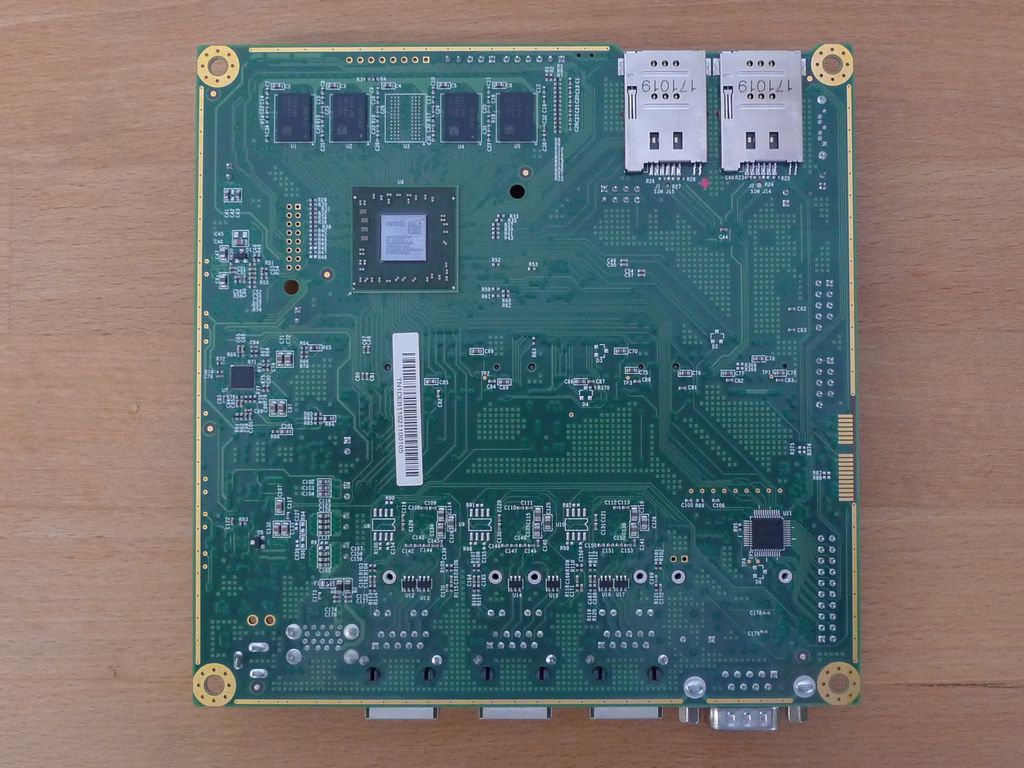

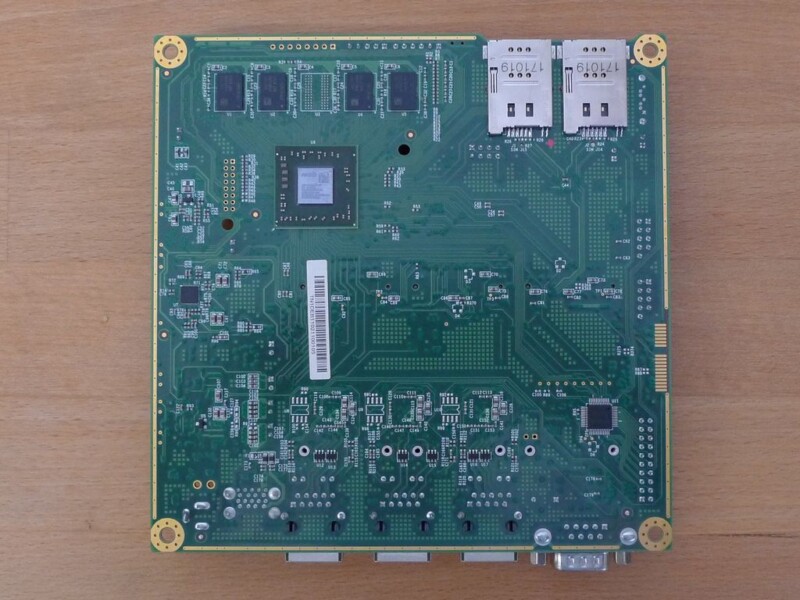

PC ENGINES apu3c2 System Board

apu3c2 System board
Status active
Part numbers apu3c2 = 3 i211AT LAN / AMD GX-412TC CPU / 2 GB DRAM
apu3b4 = 3 i211AT LAN / AMD GX-412TC CPU / 4 GB DRAM
Application This board version is targeted at applications that require 2 3G / LTE modems. SIM sockets can be swapped under GPIO control, enabling failover between two different networks even when only one modem is used. Another feature is the build option for a regular PCI express slot on the side.
Use with case1d2blku enclosures
ac12veur2 AC adapter
msata16g mSATA SSD
wle200nx miniPCI express wireless module
Specification
  • CPU: AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache.
  • DRAM: 2 or 4 GB DDR3-1333 DRAM
  • Storage: Boot from SD card (internal sdhci controller), external USB or m-SATA SSD. 1 SATA + power connector. mSATA is shared with miniPCI express.
  • 12V DC, about 6 to 12W depending on CPU load. Jack = 2.5 mm, center positive
  • Connectivity: 3 Gigabit Ethernet channels (Intel i211AT)
  • I/O: DB9 serial port, 2 USB 3.0 external + + 2 USB 2.0 internal, three front panel LEDs, pushbutton
  • Expansion: 3 miniPCI express (J14 USB or mSATA, with SIM; J15 USB only, with SIM; J16: full miniPCI express, but no SIM, intended for wifi). GPIO header, optional I2C bus, COM2 (3.3V RXD / TXD).
  • Board size: 6 x 6″ (152.4 x 152.4 mm) – same as apu1d, alix2d13 and wrap1e.
  • Firmware: coreboot (please contact support@pcengines.ch for source code if desired).
  • Cooling: Conductive cooling from the CPU to the enclosure using a 3 mm alu heat spreader (included).
OEM options PCI express slot on the side, different number of LAN ports, etc.
Documentation user’s manual
Howto HowTo collection
Cooling assembly apu cooling assembly instructions
BIOS update Please see Howto collection for instructions on BIOS upgrade.
Schematic apu3a schematics
Manufacturer PC Engines
Origin Taiwan

Additional information

Weight 0.3000 kg
