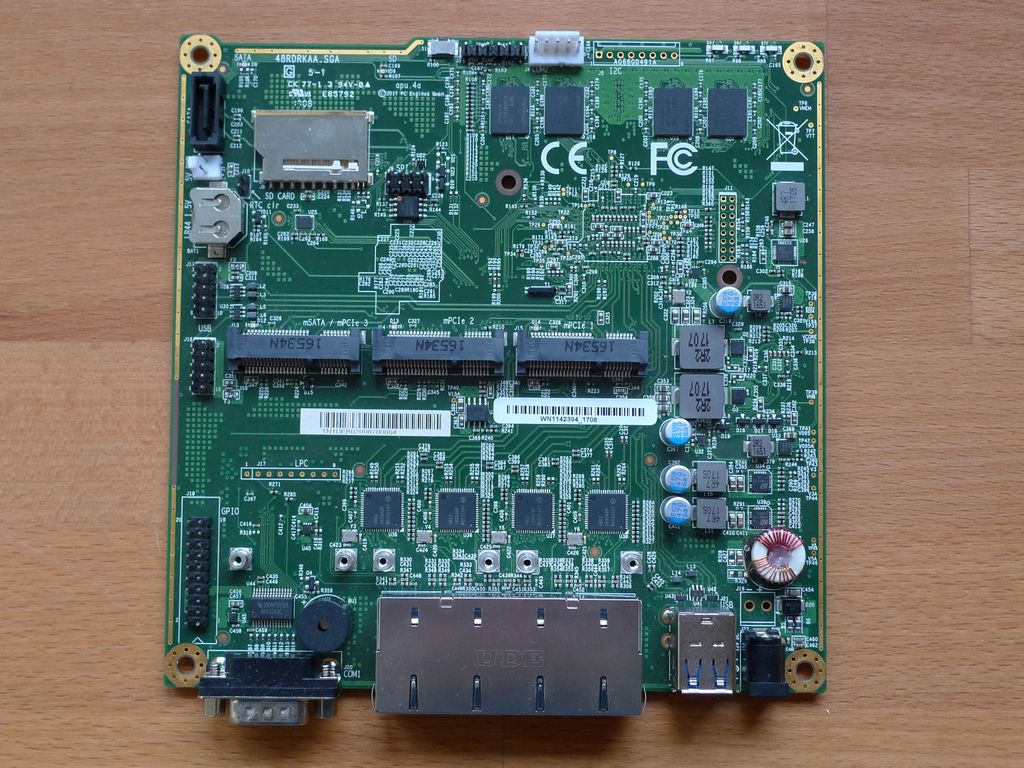

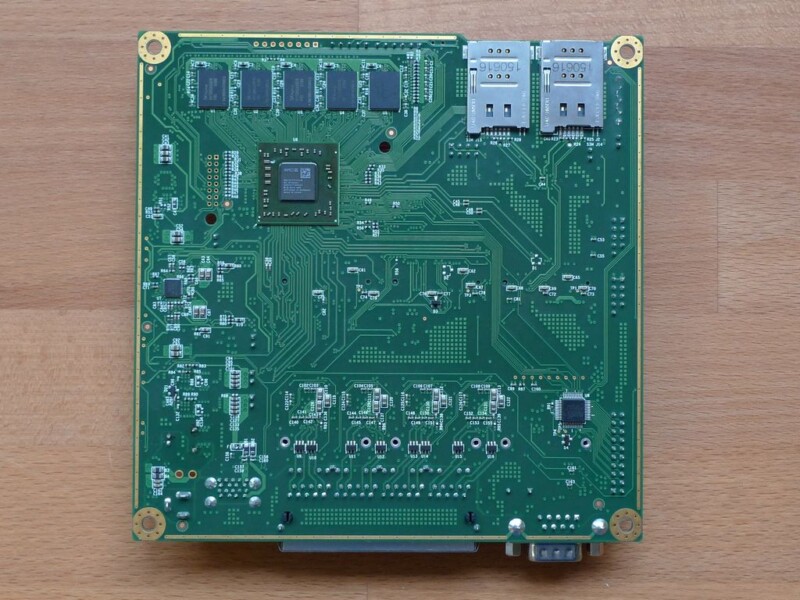

apu4b4 - PC ENGINES


PC Engines - Apu - 4 i211AT LAN / AMD GX-412TC CPU / 4 GB DRAM - This board version is targeted at applications that require 4 LAN ports.
128,62 €

Availability: In stock

  • Buy 5 for 127,01 € each and save 2%
  • Buy 10 for 125,41 € each and save 3%
  • Buy 20 for 123,80 € each and save 4%
  • Buy 50 for 122,19 € each and save 5%

PC Engines Home


apu4b4System board
Status active
Part numbers apu4b4 = 4 i211AT LAN / AMD GX-412TC CPU / 4 GB DRAM
Application This board version is targeted at applications that require 4 LAN ports.
Use with case1d4blku enclosure /
ac12veur3 / ac12vus2 / ac12vuk2 AC adapter
msata16g mSATA SSD / sd4b SD card
wle200nx / wle600vx miniPCI express wireless modules
spi1a flash recovery module
  • CPU: AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache.
  • DRAM: 2 or 4 GB DDR3-1333 DRAM
  • Storage: Boot from SD card (internal sdhci controller), external USB or m-SATA SSD. 1 SATA + power connector. mSATA is shared with miniPCI express.
  • 12V DC, about 6 to 12W depending on CPU load. Jack = 2.5 mm, center positive
  • Connectivity: 4 Gigabit Ethernet channels (Intel i211AT)
  • I/O: DB9 serial port, 2 USB 3.0 external + 2 USB 2.0 internal, three front panel LEDs, pushbutton
  • Expansion: 3 miniPCI express (J13 USB or mSATA, with SIM; J14 USB only, with SIM; J15: full miniPCI express, but no SIM, intended for wifi). GPIO header, optional I2C bus, COM2 (3.3V RXD / TXD).
  • Board size: 6 x 6" (152.4 x 152.4 mm) - same as apu1d, alix2d13 and wrap1e.
  • Firmware: coreboot (please contact for source code if desired).
  • Cooling: Conductive cooling from the CPU to the enclosure using a 3 mm alu heat spreader (included).
Documentation Pending, see other boards for reference.
Howto HowTo collection
Cooling assembly apu cooling assembly instructions
BIOS update Please see Howto collection for instructions on BIOS upgrade.
Schematic apu4b schematics,
Manufacturer PC Engines
Origin Taiwan
