RBM33G

Sku:1010190020001

MikroTik - RB M33G - Powerful OEM board with three Gigabit LAN and two miniPCIe slots

43,20 €

Availability: In stock

  • Buy 5 for 42,00 € each and save 3%
  • Buy 10 for 41,50 € each and save 4%
  • Buy 20 for 40,00 € each and save 8%

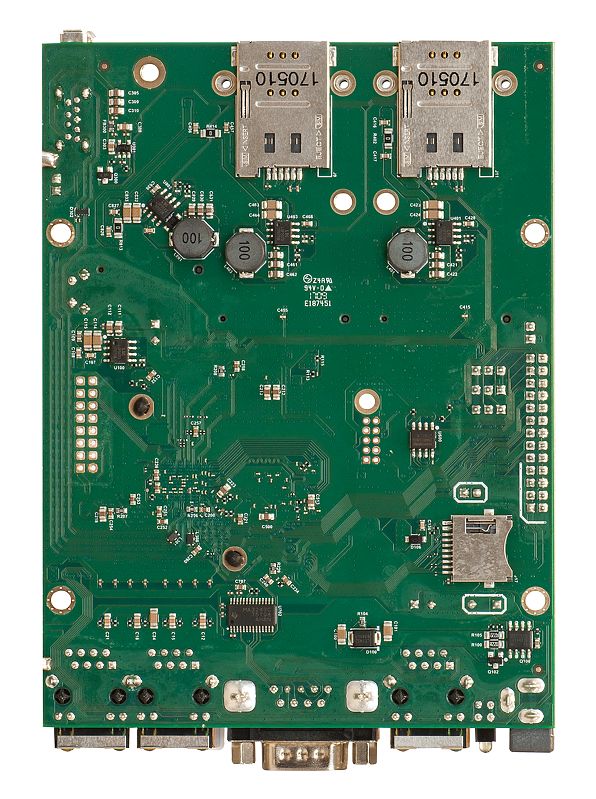

The RBM33G is a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution. It uses the same PCB form factor and same mounting holes as it’s predecessors (RB433 and RB953 series).

The RBM33G features a new two core CPU running at 880 MHz and 256 MB of DDR3 RAM and three gigabit ethernet ports. It is specially designed for setups that requires two 3G/LTE modems. You can use e.g.:

• Two miniPCIe 3G/LTE modems for multiple mobile connections (two SIM slots provided)

• One miniPCIe and One USB 3G/LTE modem leaving other miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details)

The included USB 2.0/3.0 port can be used either for 3G/LTE modem or an external hard drive (consult product Quick Guide for details). For expanding storage, microSD and a PCIe M.2 slots are provided.

The RBM33G comes fitted with a RS232 serial port for console access. The device can be powered by PoE through it’s gigabit ethernet connector or through the DC power jack.



Specifications

Details
Product code RBM33G
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
License level 4
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Suggested price $49.00


Powering

Details
PoE in Passive PoE
PoE in input Voltage 11-32 V
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 11-32 V
Max power consumption 24 W
Max power consumption without attachments 5 W


Ethernet

Details
10/100/1000 Ethernet ports 3


Peripherals

Details
Number of SIM slots 2 Modem (Mini SIM)
M.2 slots 1
MiniPCI-e slots 2
Serial port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

- Summer Promo - No
Brand Mikrotik
Frequency No
Features (Beta) Ethernet ports, Poe in
Applications Indoor
