Teracom Door Magnetic Sensor – TSD800

SKU: 1010156100106 Categories: , , ,


Teracom Door Magnetic Sensor – TSD800

Out of stock


Teracom Door Magnetic Sensor – TSD800

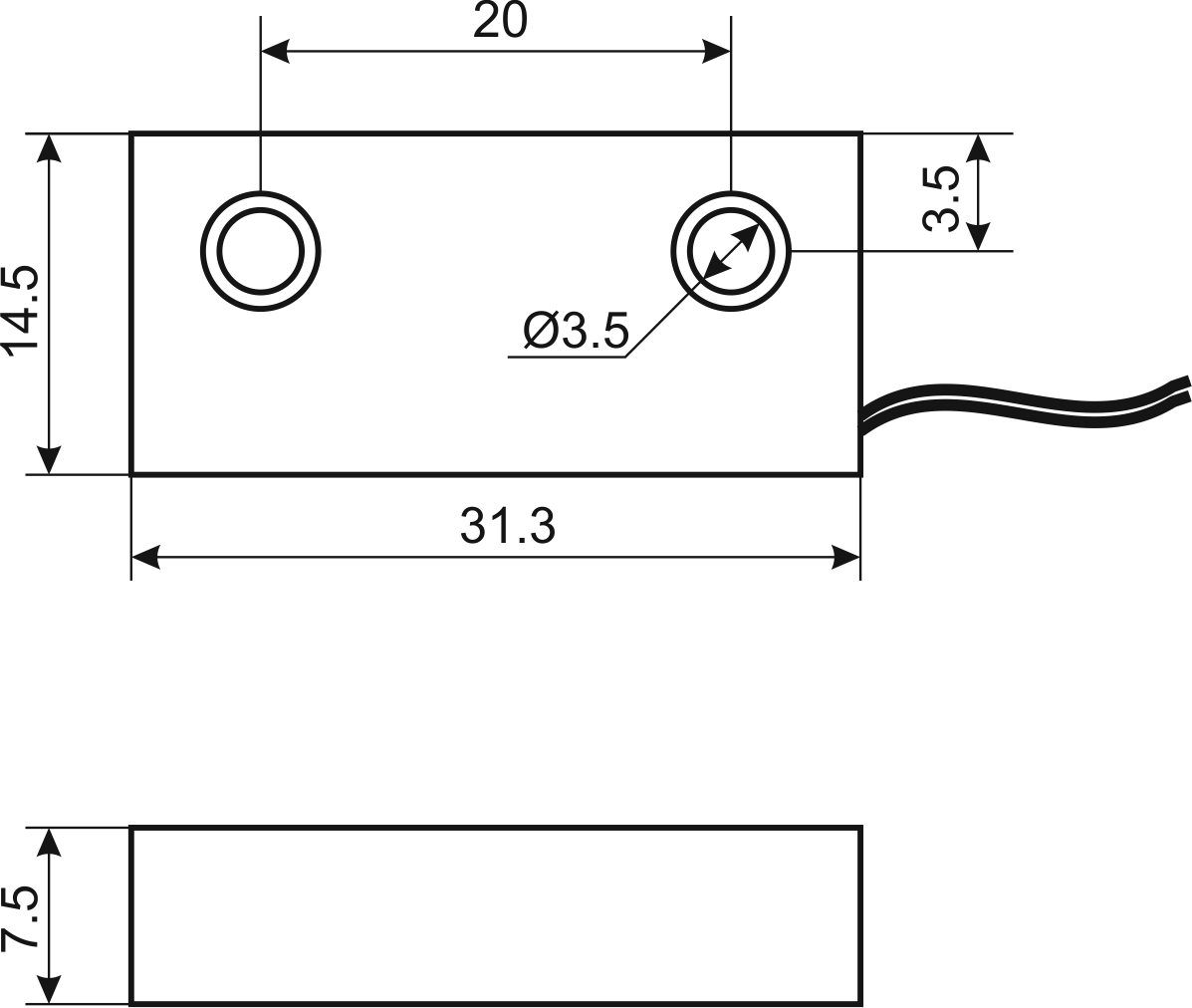

TSD800 is a door magnetic sensor with leads. The robust design makes it ideal choice for either metal or wooden doors and windows.

TSD800 has a relay output and can be used with controllers which have digital inputs in “dry contact” mode. The sensor is supported by TCW11x, TCW12x, TCW220TCW241 and TCG120 controllers.



– Excelent choice for for residential or commercial use;

– Wide gap;

– Screw mount.

Typical applications

– Door or window securure;

– Open window detection for hotel and offices;

– Building Management System (BMS).

Technical parameters

Parameter Value Unit
Maximum switchable voltage 28 VDC
Maximum switchable current 100 mA
Maximm gap 25 mm
Leads 250 mm
Switch type SPDT Reed


Additional information

Weight 0.0500 kg
