TRASFORMATORE Primary +15-0-230-400 VAC

SKU: 1011500200230 Categories: , ,

39.90

primario 15V ac, 230V ac, 400V ac, secondario ±24V ca, 100VA

1 in stock

Description

Phase EI Transformer

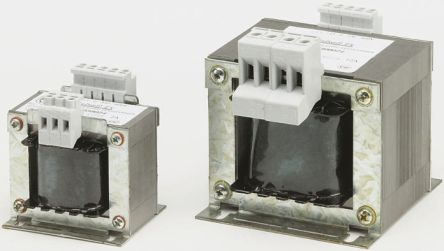

Control Panel Transformer – Primary +15-0-230-400 VAC

Standard control panel transformers with mounting prackets and terminals designed according to the following specifications.

Specifications:

Power:
Frequency:
Primary:
Secondary:

Isolation:
Temp. class:
Approvals:

50 – 1000 VA
50/60 Hz
+15-0-230-400 VAC
12-0-12, 24-0-24, 55-0-55 or
0-230 VAC
4 kV RMS
B (130°)
EN61558-2
  • High quality safety and isolating transformers designed for use in control circuits and general applications
  • Low loss noise laminations
  • Dual standard primary winding 230/400V ac with +15V tap for input flexibility
  • Dual secondaries centre tapped. Earth terminal provided
  • Varnish impregnated for overall protection against humidity and rusting
  • Fully shrouded cage clamp terminal with voltage markings
  • Detailed product specification on permanent label
  • High efficiency, low regulation design
  • 100% electrical and flash tested
Technical specification
Rated  Regulation  Overall Size  Fixing  Fixing  Wt.
VA  % Typ  L x W x H  Centres  Dia.  Kg.
50  84 x 84 x 91  64 x 64  4.5  1.9
100  7.5  84 x 97 x 91  64 x 72  4.5  2.5
150  108 x 90 x 110  84 x 72  6.5  3.5
200  108 x 114 x 110  84 x 92  6.5
300  120 x 143 x 130  90 x 106  6.5  6.9
500  2.5  120 x 143 x 130  90 x 106  6.5  7.5
1000  150 x 175 x 155  122 x 132  14.6

Standard Transformers:

Primary +15-0-230-400Vac
Secondary 12-0-12Vac (24Vac)

Rating stock no.  WIC no.

50VA  433-8630 WT1991
100VA  433-8674 WT1995
150VA  433-8719 WT1999
200VA  433-8731 WT2001
300VA  433-8781 WT2005
Primary +15-0-230-400Vac
Secondary 24-0-24Vac (48Vac)

Rating stock no.  WIC no.

50VA  433-8646 WT1992
100VA  433-8680 WT1996
200VA  433-8747 WT2002
300VA  433-8797 WT2006
Primary +15-0-230-400Vac
Secondary 55-0-55Vac (110Vac)

Rating stock no.  WIC no.

50VA  433-8652 WT1993
100VA  433-8696 WT1997
150VA  433-8725 WT2000
200VA  433-87Mikrotik Technical Support WT2003
300VA  433-8804 WT2007
500VA  433-8810 WT2008
1000VA  433-8848 WT2010
Primary +15-0-230-400Vac
Secondary 0-230Vac

Rating  stock no.  WIC no.

50VA  433-8668 WT1994
100VA  433-8703 WT1998
200VA  433-8775 WT2004
500VA  433-8832 WT2009
1000VA  433-8854  WT2011

Additional information

Weight 3.0000 kg
Applications

Indoor
