Description

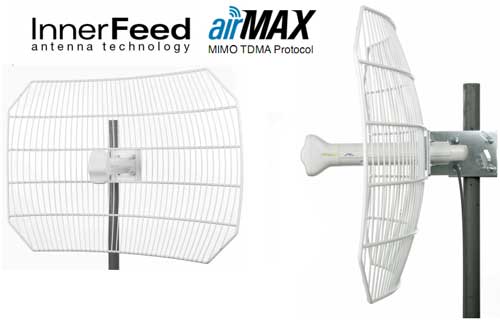

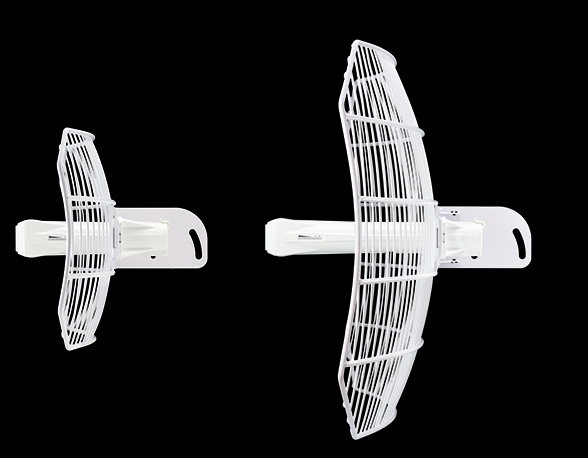

Utilizing InnerFeed™ technology, the new airGrid™M HP Series from Ubiquiti Networks™ represents the latest evolution of outdoor wireless broadband devices. The revolutionary InnerFeed technology integrates the entire radio system into the feedhorn of the antenna. airGridM combines Ubiquiti’s InnerFeed and airMAX™ ( TDMA protocol) technologies to create a simple, yet extremely powerful and robust wireless CPE (Customer Premises Equipment).
Complete antenna and radio system integration provides affordable cost/performance solutions to the wireless broadband industry. airGridM operates in the worldwide, license-free frequency range of either 2 GHz or 5 GHz, and features breakthrough performance up to 100+ Mbps in real outdoor throughput and incredible range up to 30+ km.
The low-cost, high-performance, robust “all-in-one” design and light weight of airGridM make it versatile and ideal in several different applications.
Specifications:
|
System Information |
|
|
Processor Specs |
Atheros MIPS 24KC, 400 MHz |
|
Memory Information |
32 MB SDRAM, 8 MB Flash |
|
Networking Interface |
(1) 10/100 Ethernet Port |
|
Regulatory / Compliance Information |
|
|
Wireless Approvals |
FCC Part 15.247, IC RS210, CE |
|
RoHS Compliance |
Yes |
|
Physical / Electrical / Environental |
|
|
EnclosureCharacteristics |
Outdoor UV Stabilized Plastic |
|
Mounting Kit |
Pole Mounting Kit (Included) |
|
Max. PowerConsumption |
3 W |
|
Power Supply |
24V, 0.5A PoE Adapter (Included) |
|
Power Method |
Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return) |
|
Operating Temperature |
-30 to 75° C |
|
Operating Humidity |
5 to 95% Condensing |
|
Shock and Vibration |
ETSI300-019-1.4 |
|
ETSI Specification |
EN 302 326 DN2 |
|

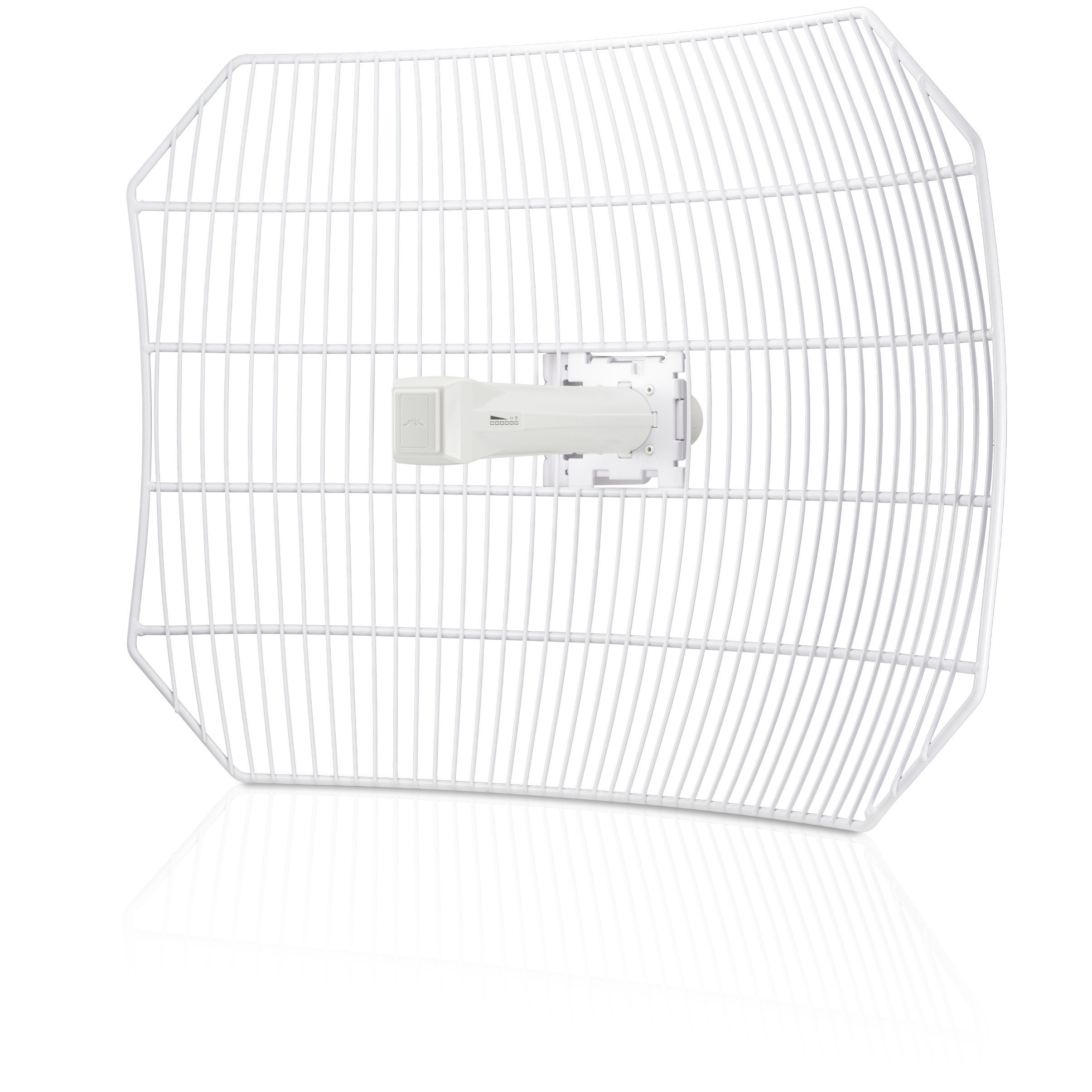

AG-HP-5G27 Specifications |
|
|
Dimensions |
620 x 460 x 360 mm (MountIncluded) |
|
Weight |
2585 g (Mount Included) |
|
Wind Survivability |
125 mph |
|
Wind Loading |
8 lbf @ 125 mph |
|
Antenna / Radio Information |
|
|
Operating Frequency |
Worldwide: 5170 – 5875 MHz USA: 5725 – 5850 MHz |
|
Output Power |
25 dBm |
|
Max. VSWR |
1.5:1 |
|
Gain |
27 dBi |
