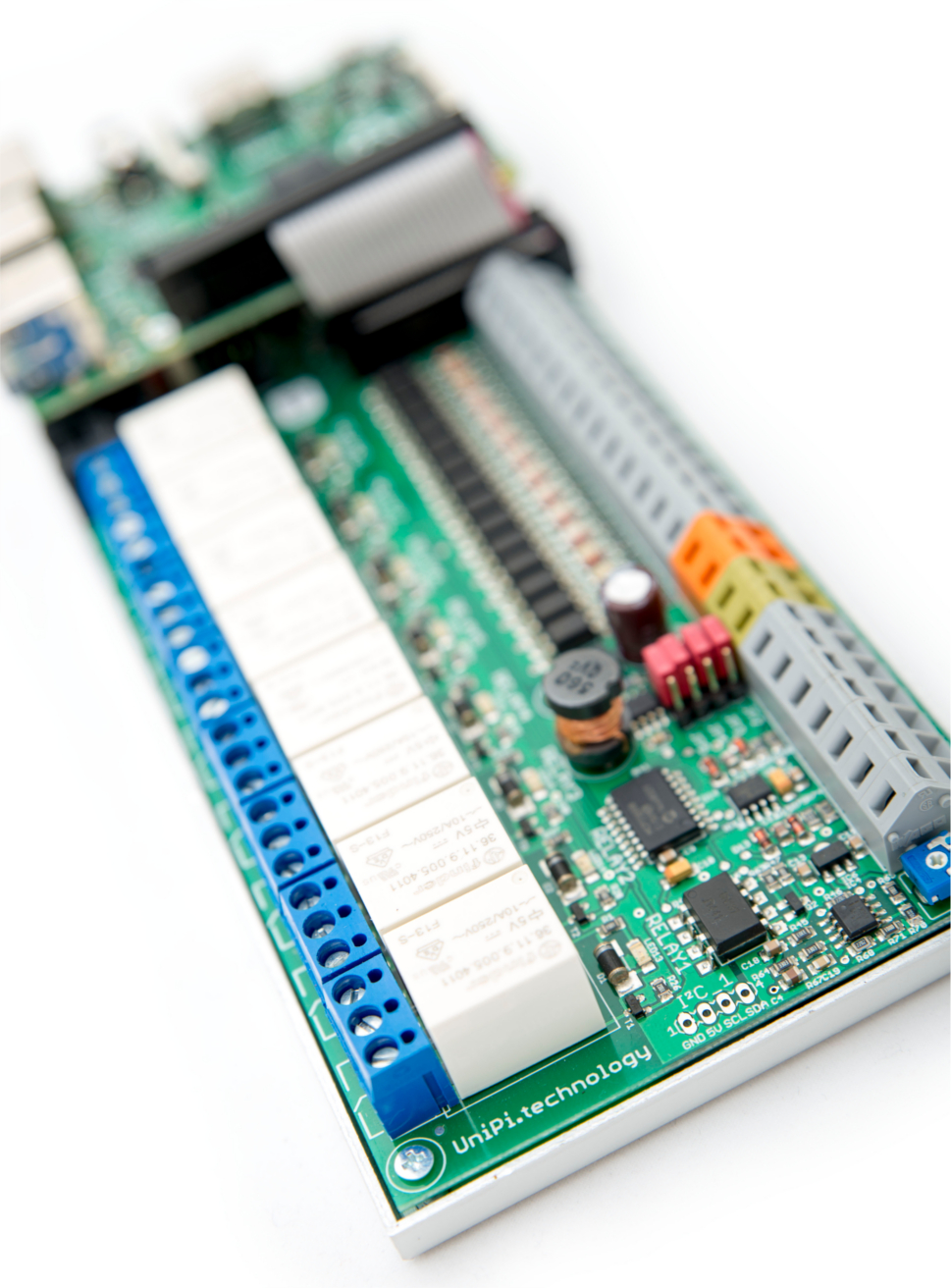

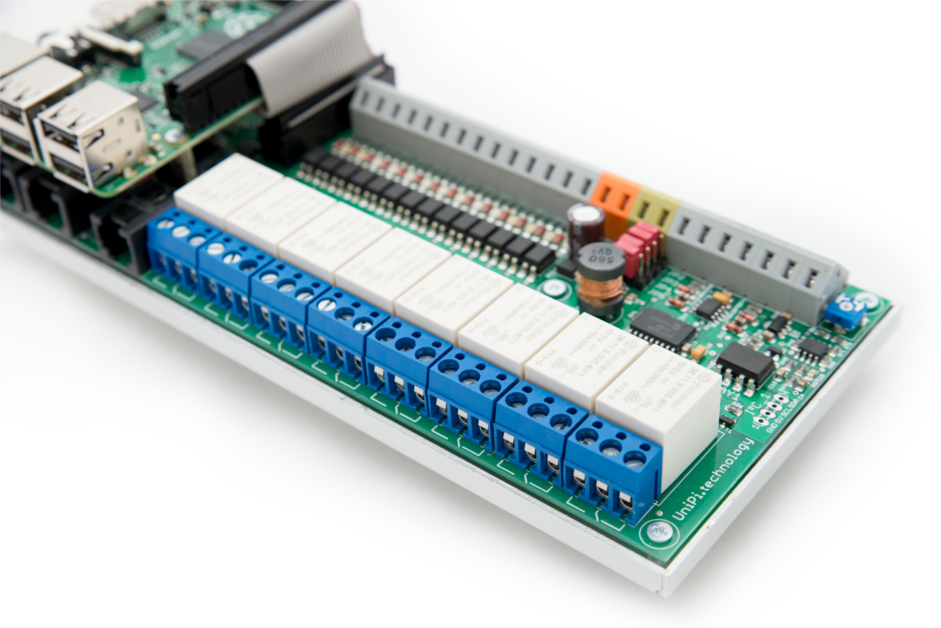

UniPi board v. 1.1

Sku:1010156100300

UniPi v1.1 is an extension for Raspberry Pi together makes a programmable controller unit for universal use in systems of automation, regulation and monitoring.

€118.90

Availability: In stock

UniPi 1.1



PRODUCTS



UniPi is an extension for Raspberry Pi which in combination makes aa programmable controller unit.



UniPi is an extension for Raspberry Pi and in combination they make programmable controller unit. It issuitable for use in Smart HomeBMS systems (Building management system) and for development of innovation in the field of Internet of Things. As an example may be building heating automation, automatic light switching, watering systems, garrage and gate control and other applications (read more in our references and Smart Home applications description). UniPi is an affordable control unit which can help you increase comfort and decrease operation costs.



Key features of the product



  • 8 × changeover relays (rated 250V AC/5A or 24V DC/5A)
  • 14 × galvanically isolated digital inputs (triggered by 5-24V DC)
  • 2 × 0-10 V analogue inputs
  • 1 × 0-10 V analogue output
  • 1 × 1-Wire port (suitable for connection of for example digital 1-Wire thermometers or other 1-Wire sensors)
  • 1 × I2C port for extension
  • 1 × Battery slot for RTC (Real Time Clock)
  • 1 × UART port for external serial communications (it is possible to connect directly via serial adapter)



UniPi v1.1 is officially compatible with Raspberry Pi model B+Raspberry Pi 2 model B and with Raspberry Pi 3 model B.



How does it work









Raspberry Pi



Raspberry Pi serves as a CPU of the control unit. Inside there is inserted SD card with a stored control software, RPi itself processes the received signals and sends reactions. All the individual interfaces, inputs and outputs are connected to RPi processor directly over GPIO or non-directly via I2C. Raspberry Pi  also provides connection to the network (which allows local or remote system control) and USB (over USB it is possible to connec for example RS485 convertor for Modbus comunication).



I2C



Some parts of UniPi (relays) are connected to the processor over I2C. Over it is possible to connect extension modules in case of need for additional inputs / outputs.



1-Wire



1-Wire channel allows connection of 1-Wire sensors and devices. Typically is is suitable for connection of digital thermometers, which are affordable and easy to install.



Software



UniPi v1.1 is compatible with a lot of software. For UniPi control we recommend either our open source driver EVOK or our advanced control software Mervis. You may also be interested in introduction to choosing choosing software, where other compatible software platforms are mentioned.

UniPi v1.1 is an extension for Raspberry Pi together makes a programmable controller unit for universal use in systems of automation, regulation and monitoring.

Package includes

  • UniPi board v. 1.1
  • quick start guide
  • 26 pin (2×13) cable for connecting to Raspberry Pi model B+ a Raspberry Pi 2 model B, Raspberry Pi 3 model B
  • 3× metal spacer 2M5 (20mm)
  • 3× screw 2M5



The package does not include Raspberry Pi and DIN rail holder.

UniPi v1.1 is an extension for Raspberry Pi together makes a programmable controller unit for universal use in systems of automation, regulation and monitoring.



Properties

  • Compatible with Raspberry Pi B+, Raspberry Pi 2 and Raspberry Pi 3
  • 8 × changeover relays rated 250V AC/5A or 24V DC/5A
  • 12 × galvanically isolated digital inputs triggered by 5-24V DC voltage with minimum pulse length of 5ms
  • 2 × 0-10V analogue inputs
  • 1 × 0-10V analogue output
  • 1 × 1-Wire port for connection to 1-Wire thermometers and other sensors
  • 1 × I2C port for expansion
  • 1 × UART port for external serial communications
  • socket for battery powering RTC
  • connection with Raspberry Pi via a supplied ribbon cable
  • possible to extend with extension modules over I2C
  • possible to equip with DIN rail mounting and plastic cover
  • requires external 5V 2.5A power supply with 2.1mm DC jack



Package includes

  • UniPi board v. 1.1
  • quick start guide
  • 26 pin (2×13) cable for connecting to Raspberry Pi model B+ a Raspberry Pi 2 model B, Raspberry Pi 3 model B
  • 3× metal spacer 2M5 (20mm)
  • 3× screw 2M5

The package does not include Raspberry Pi and DIN rail holder.

UniPi v1.1 is compatible with a lot of software. For UniPi control we recommend either our open source driver EVOK or our advanced control software Mervis. You may also be interested in introduction to choosing software.



TECHNICAL PARAMETERS 9


Analog inputs 2
RTC battery socket          Ano
Weigth 210 g
Digital inputs 14
1-Wire bus Ano
Power 5 V DC / 2.4 A
Analog outputs 1
Dimensions 20 mm × 86 mm ×198 mm
Relay outputs 8



Documentation

Manual
Detailed technological guide for the product
 download
Certification
Declaration of conformity
 download
