Description

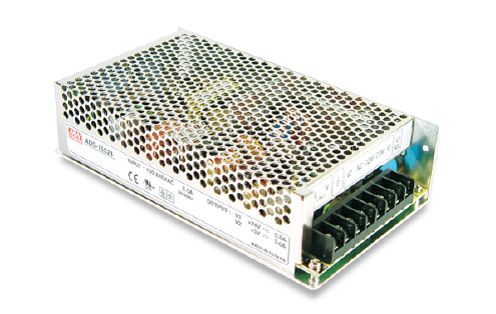

AC/DC CONVERTER, 155W, 27.6V, DUAL, PFC Battery Charge
155W Single Output with Battery Charger(UPS Function)
Product Code: AD-155B
Download AD-155B datasheet.pdf
| Voltaggio nominale (range di regolazione) |
27,5V (24-29V) |
| Potenza massima all’uscita |
5A |
| Tensione batteria tampone e massima corrente di carica |
24V – 0,5A |
Features:
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Battery low and battery polarity protection
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at PFC 67KHz, PWM 134KHz
Details:
Input Voltage: 88…264V AC (47…63Hz) – 124…370V DC
Input Inrush Current, Max.: 40A
Leakage Current, Max.: 1mA
Over Load Protection: 105…135%
Output Voltage: 24-29V (adjustable) max 5A
Battery Voltage: 24V, max charge 0,5A
Withstand Voltage
I/P-O/P: 3000V AC
I/P-FG: 1500V AC
O/P-FG: 500V AC
Operating Temperature: -10…+60 C
Weight: 880g
