CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

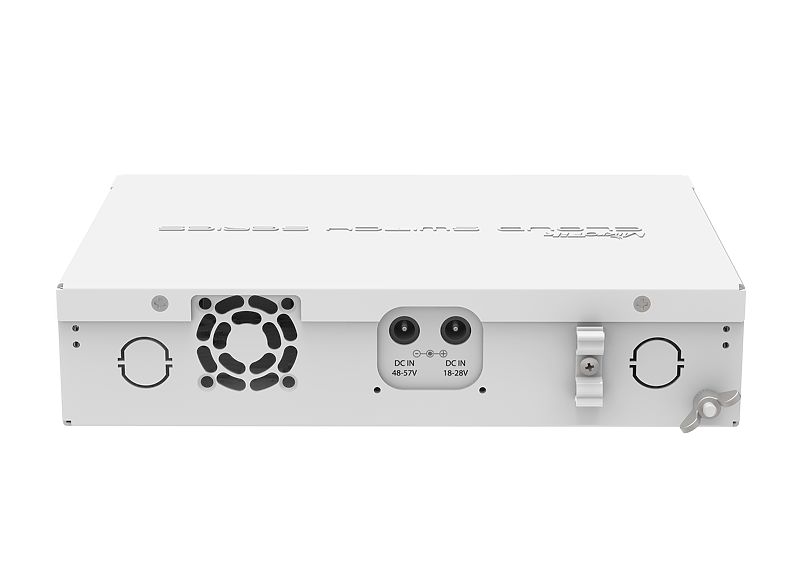

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately - product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins
Details | |
---|---|
Product code | CRS112-8P-4S-IN |
Architecture | MIPSBE |
CPU | QCA8511 |
CPU core count | 1 |
CPU nominal frequency | 400 MHz |
License level | 5 |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -20°C to 60°C |
Suggested price | $179.00 |
Details | |
---|---|
PoE out | 802.3af/at |
Number of DC inputs | 2 (DC jack) |
DC jack input Voltage | 18 - 57 V |
Max out per port output (input > 30 V) | 450 mA |
Max out per port output (input < 30 V) | 1 A |
Max total out (A) | 2.8 A |
Max power consumption | 150 W |
Max power consumption without attachments | 10 W |
Details | |
---|---|
10/100/1000 Ethernet ports | 8 |
Details | |
---|---|
SFP ports | 4 |
Details | |
---|---|
Serial port | RJ45 |
Details | |
---|---|
PCB temperature monitor | Yes |
- Summer Promo - | N/A |
---|---|
Brand | Mikrotik |
Frequency | No |
Features (Beta) | Ethernet ports, Gigabit, Poe Out |
Applications | Indoor |
