CRS 125-24G-1S-2HnD-IN

Sku:1010190004005

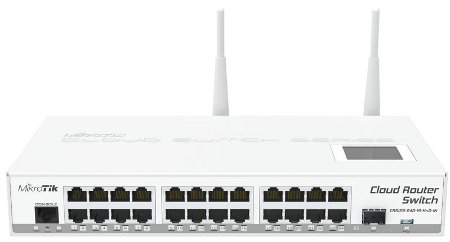

MikroTik - CRS125-24G-1S-2HnD-IN - 24x Gigabit Ethernet layer 3 Smart Switch, 1x SFP cage, LCD, 802.11b/g/n Dual Chain wireless, 600MHz CPU, 128MB RAM, Metal desktop case, RouterOS L5
164,55 €

Availability: In stock

  • Buy 5 for 163,85 € each and save 1%
  • Buy 10 for 162,46 € each and save 2%
  • Buy 20 for 161,77 € each and save 2%
  • Buy 50 for 161,08 € each and save 3%

Cloud Router Switch is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
What’s more - this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device - ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.

Perfect SOHO gateway router, switch, 11n AP all in one box
• Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
• RouterOS gateway/firewall/VPN router with passive cooling
• up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)
• high power 2.4GHz 11n wireless AP



Specifications

Details
Product code CRS125-24G-1S-2HnD-IN
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 285x145x45mm
License level 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -30°C to 60°C
Suggested price $209.00


Powering

Details
PoE in Passive PoE
PoE in input Voltage 8-28 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-28 V
Max power consumption 19 W


Wireless

Details
Antenna gain dBi for 2.4 GHz 4
Wireless 2.4 GHz standards 802.11b/g/n
Wi-Fi generation 4
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz chip model AR9344


Ethernet

Details
10/100/1000 Ethernet ports 24


Fiber

Details
SFP DDMI Yes
SFP ports 1


Peripherals

Details
Serial port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s 29 -97
11MBit/s 28 -90
6MBit/s 30 -96
54MBit/s 25 -76
MCS0 30 -96
MCS7 23 -73

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

- Summer Promo - N/A
Brand Mikrotik
Frequency 2.4 Ghz
Features (Beta) Ethernet ports, Gigabit, SFP/SFP+ , Poe in, Usb, Wireless
Applications Indoor, Wall Mount
