CRS318-1Fi-15Fr-2S-OUT – NetPower 15FR

127.00

NetPower 15FRAn

outdoor 18 port switch with 15 reverse PoE ports and SFP. Cut costs, not speed – choose GPEN over GPON!

10 in stock

Description

With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 15 can power other PoE capable devices with the same voltage as applied to the unit.

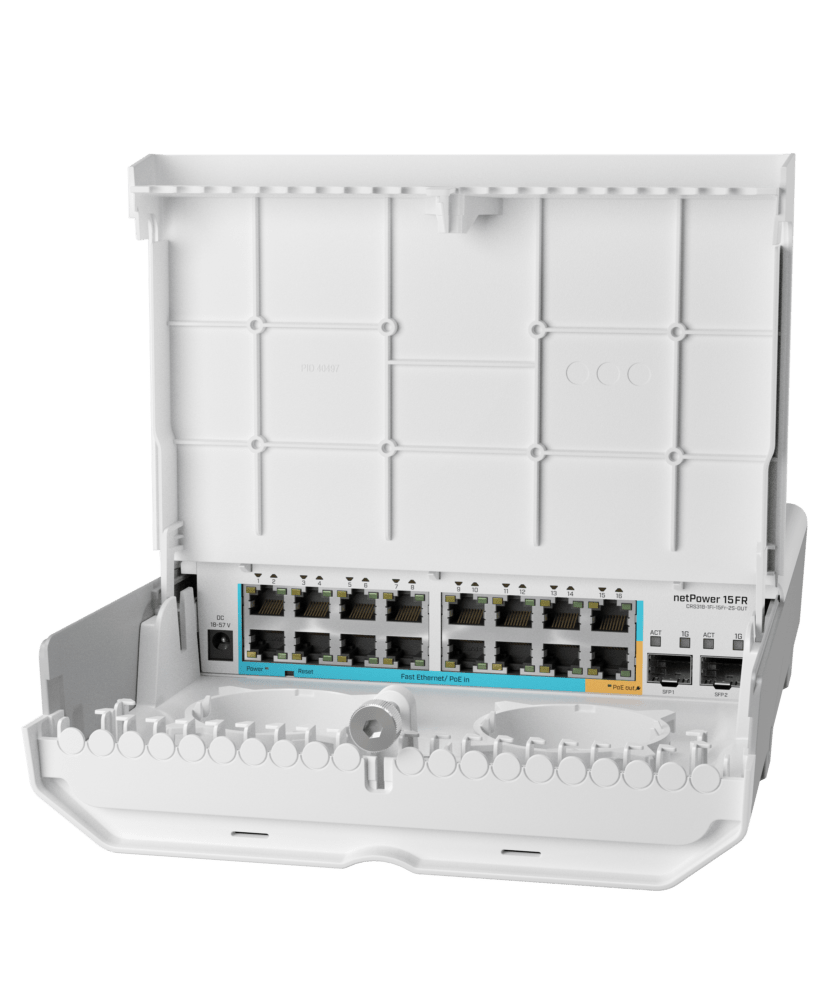

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!

netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.

The power supply is NOT included with the product- must be purchased separately. Read more information about GPEN concept.



Specifications

Details
Product code CRS318-1Fi-15Fr-2S-OUT
Architecture ARM 32bit
CPU 98DX224S
CPU core count 1
CPU nominal frequency 800 MHz
Switch chip model 98DX224S
Dimensions 304 x 212 x 71 mm
RouterOS license 5
Operating System RouterOS / SwitchOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 16 (PoE-IN, DC jack)
DC jack input Voltage 18-57 V
Max power consumption 29 W
Max power consumption without attachments 10 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-57 V (recommended 36-57V)

PoE-out

Details
PoE-out ports Ether15
PoE out Passive PoE
Max out per port output (input 18-30 V) 0.75 A
Max out per port output (input 30-57 V) 0.5 A
Max total out (A) 0.75 A

Ethernet

Details
10/100 Ethernet ports 16

Fiber

Details
SFP ports 2

Other

Details
CPU temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP54

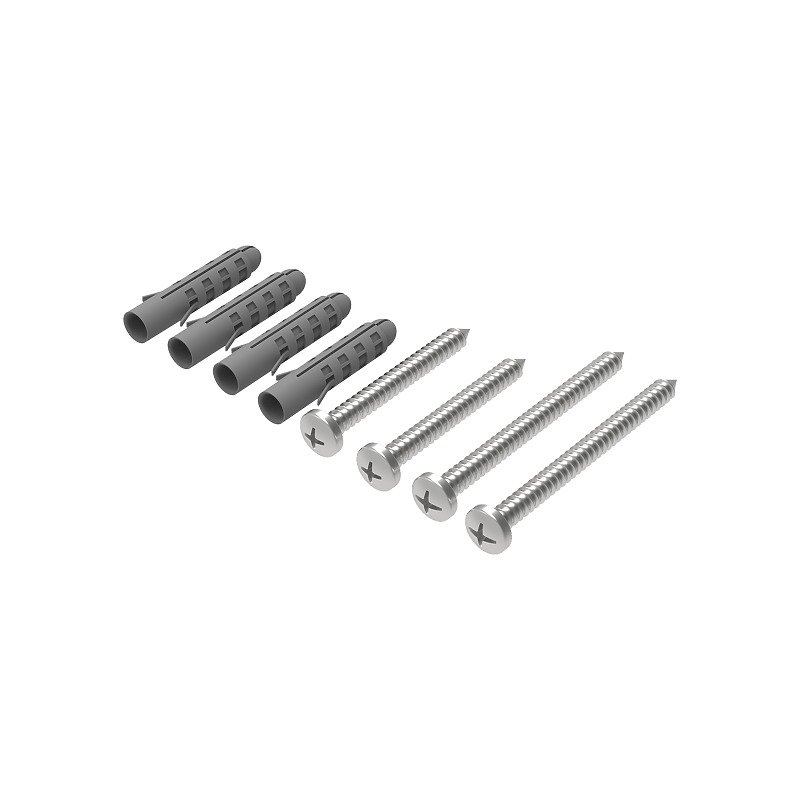

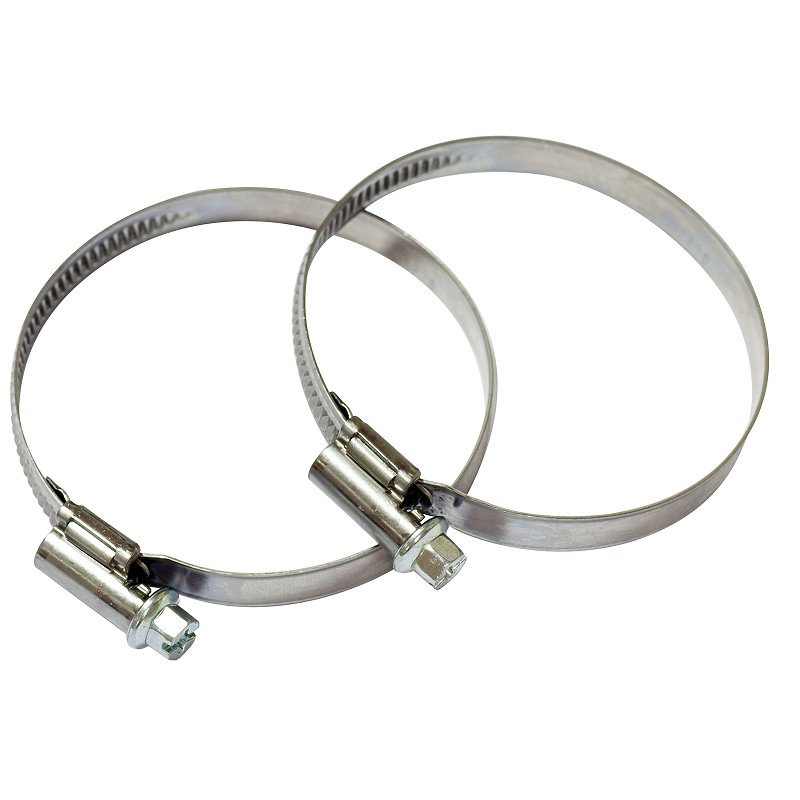

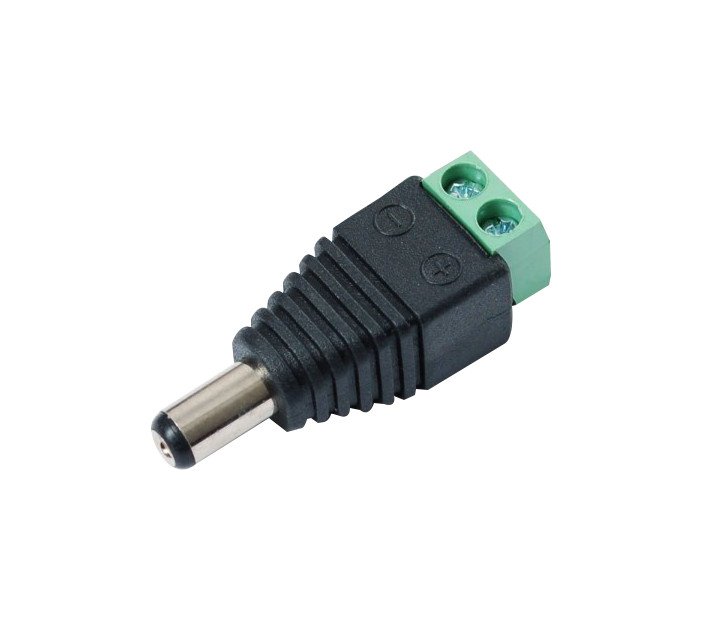

Included parts
