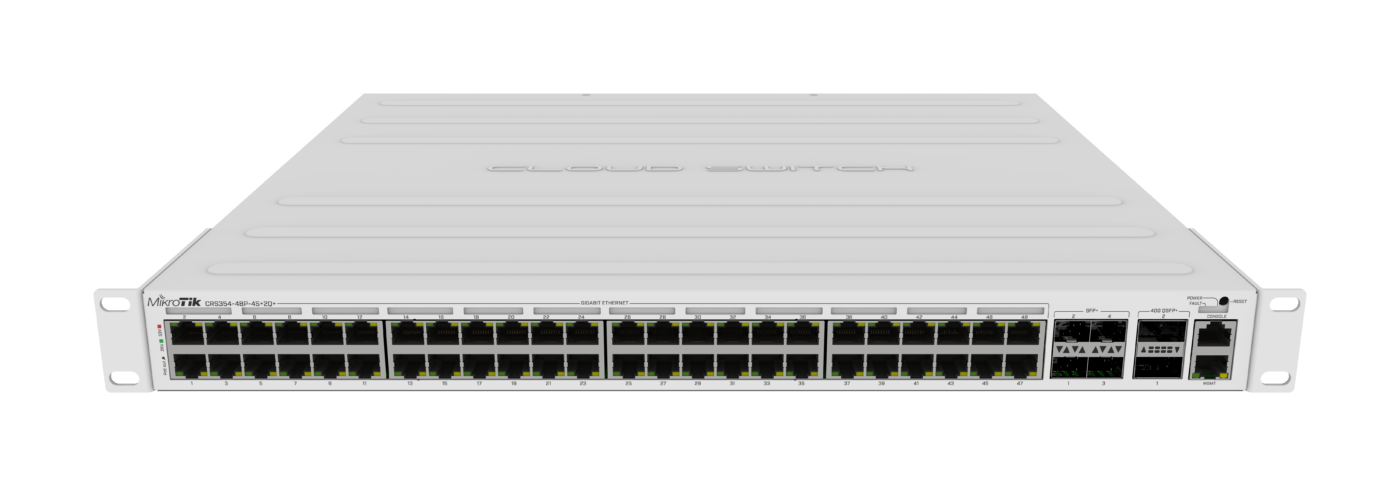

If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.

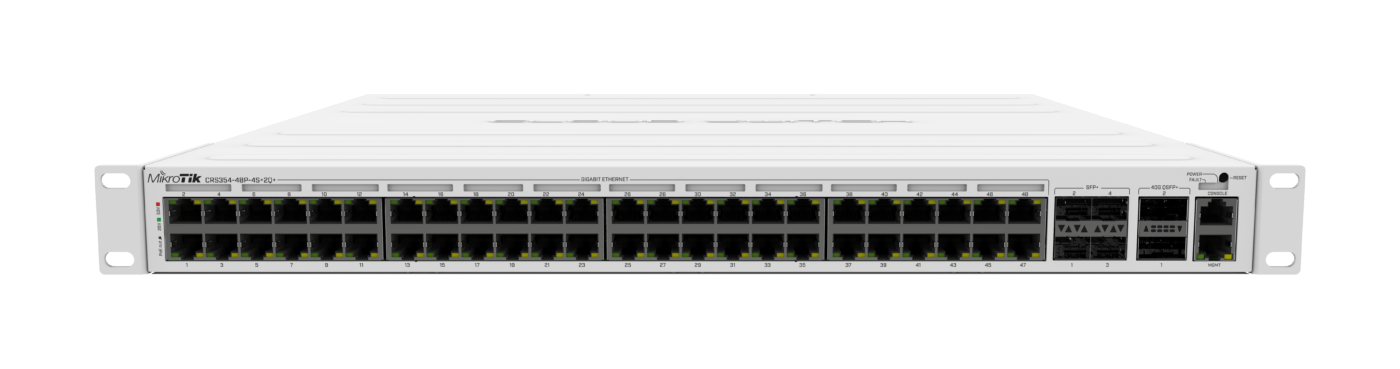

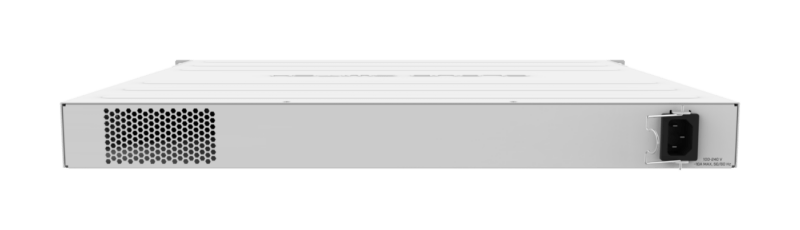

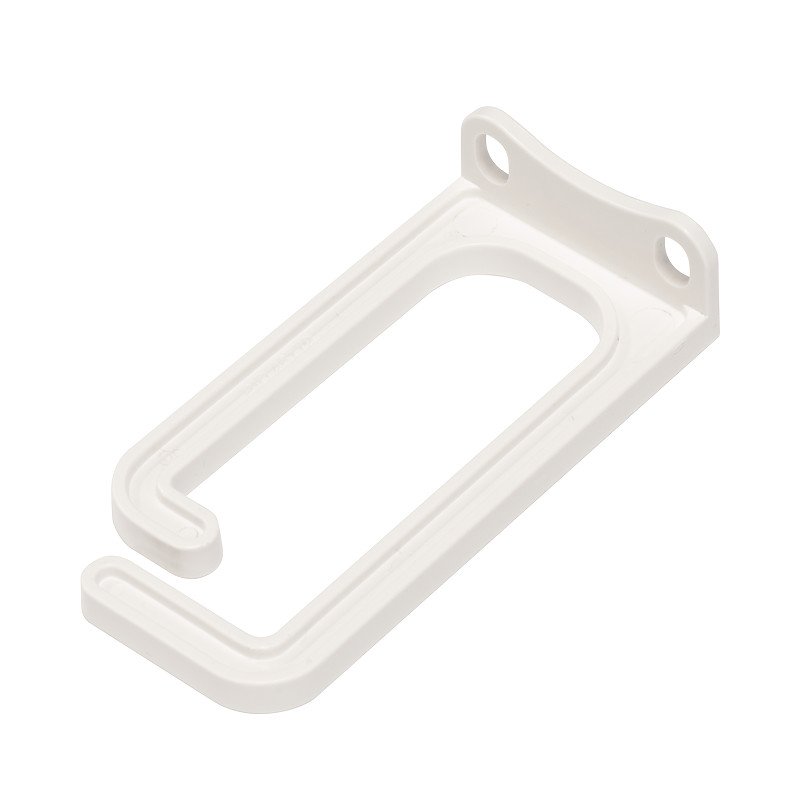

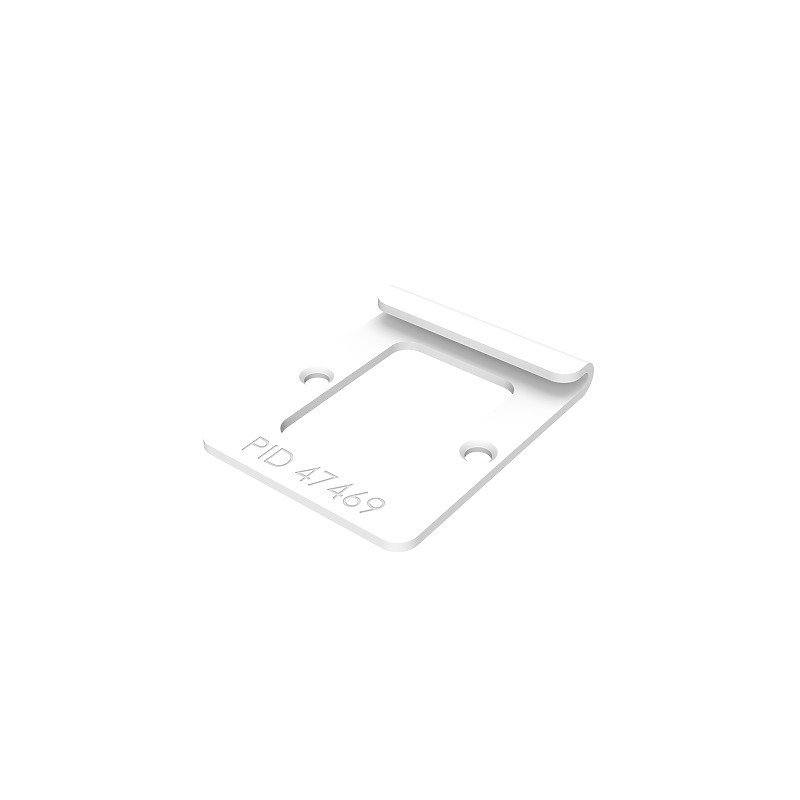

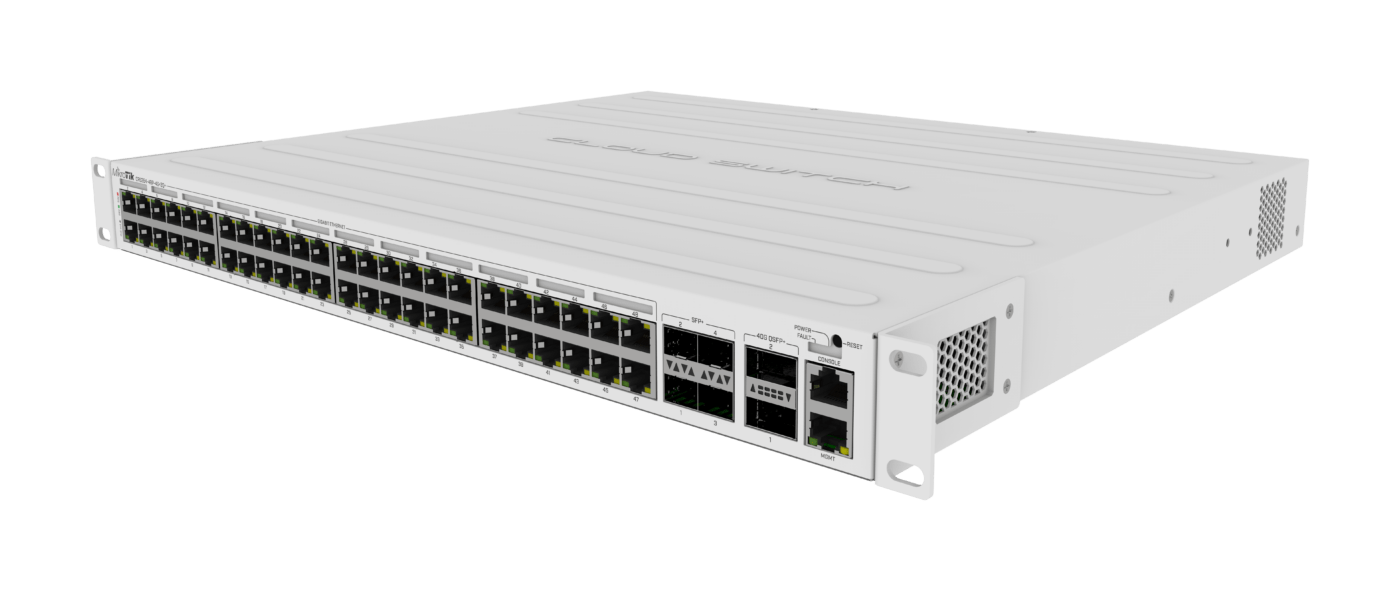

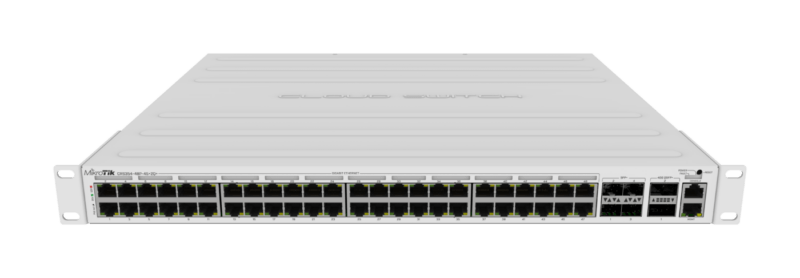

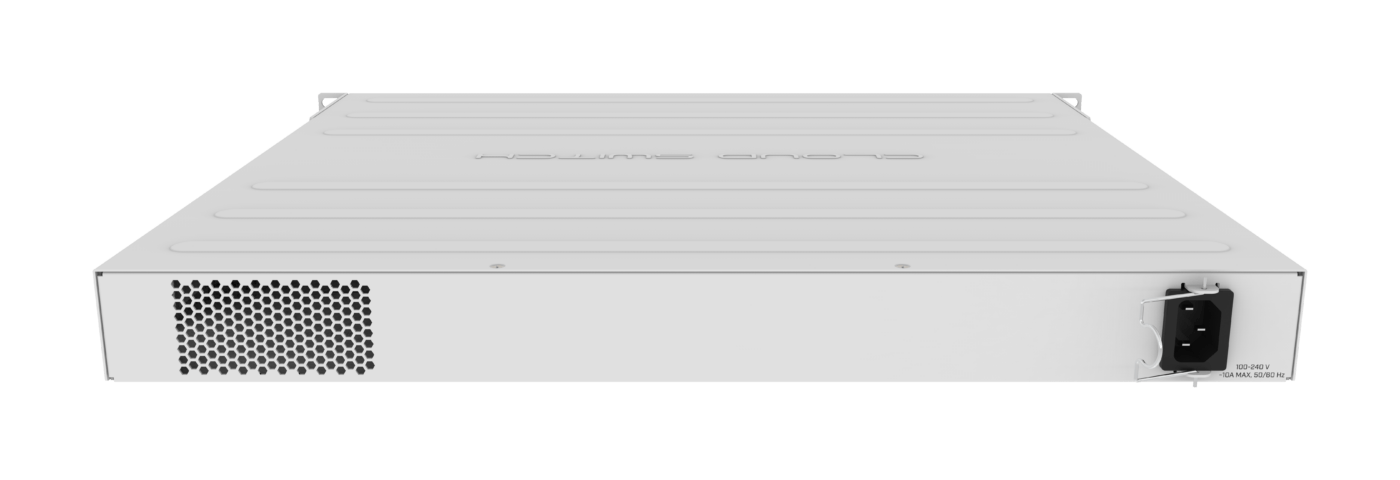

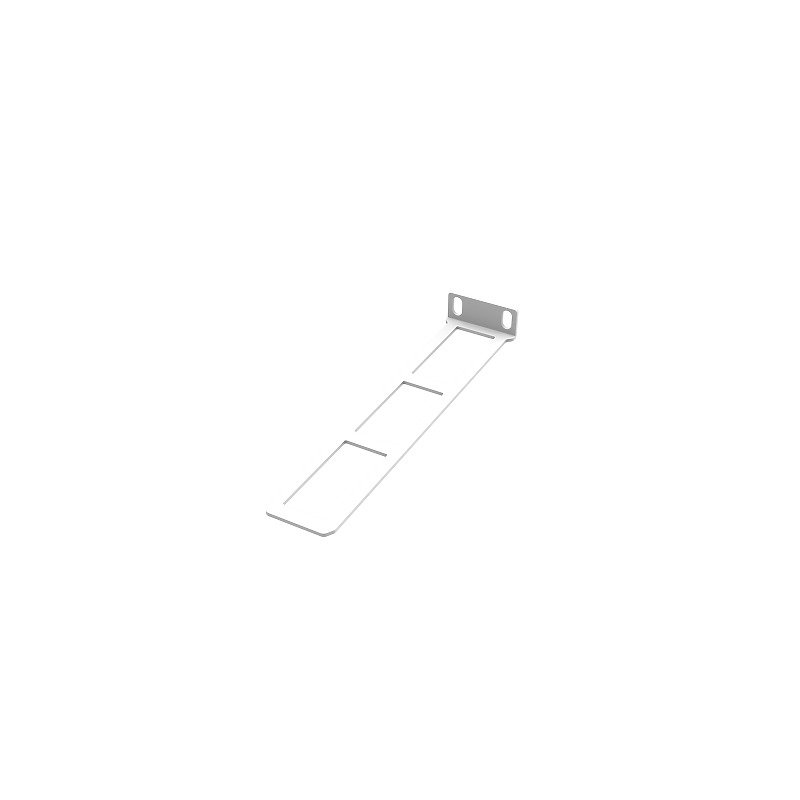

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.
CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.
The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
|CPU core count||1|
|CPU nominal frequency||650 MHz|
|Switch chip model||98DX3257|
|Dimensions||443 x 382 x 44 mm|
|Operating System||RouterOS / SwitchOS|
|Size of RAM||64 MB|
|Storage size||16 MB|
|MTBF||Approximately 200’000 hours at 25C|
|Tested ambient temperature||-20°C to 60°C|
|Number of AC inputs||1|
|AC input range||100-240|
|Max power consumption||800 W|
|Max power consumption without attachments||85 W|
|Cooling type||4 fans|
|Max out per port output (input 18-30 V)||1000 mA|
|Max out per port output (input 30-57 V)||570 mA|
|Total output current||27A at 26V OR 13.2A at 53V|
|Total output power||700W|
|10/100 Ethernet ports||1|
|10/100/1000 Ethernet ports||48|
|Number of 40G QSFP+ ports||2|
|Serial console port||RJ45|
|CPU temperature monitor||Yes|
|PCB temperature monitor||Yes|
|Certification||CE, EAC, ROHS|
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
