Description

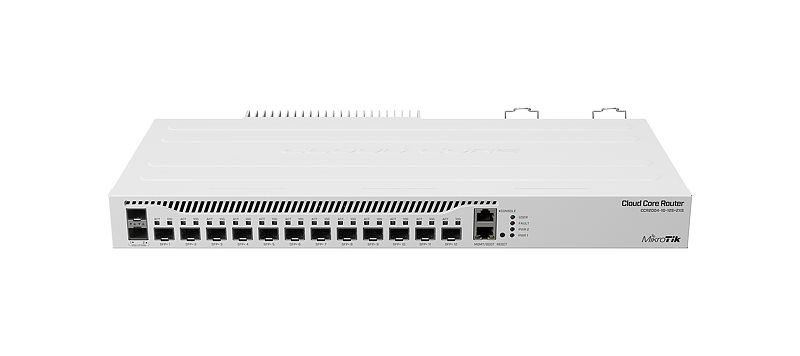

The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.
CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.

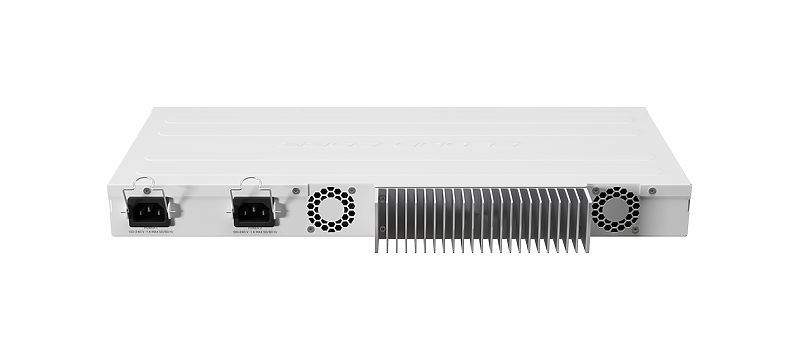

Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations! Size of RAM in RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC
Specifications
| Details | |
| Product code | CCR2004-1G-12S+2XS |
| Architecture | ARM 64bit |
| CPU | AL32400 |
| CPU core count | 4 |
| CPU nominal frequency | 1700 MHz |
| IPsec hardware acceleration | Yes |
| Dimensions | 443 x 224 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 4 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -20°C to 60°C |
Powering
| Details | |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 49 W |
| Max power consumption without attachments | 32 W |
| FAN count | 2 |
Ethernet
| Details | |
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
| SFP+ ports | 12 |
| Number of 25G SFP28 ports | 2 |
Peripherals
| Details | |
| Serial port | RJ45 |
Other
| Details | |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
| Certification | CE, EAC, ROHS |
Included parts
| 24V 1.2A power adapter |
