Description

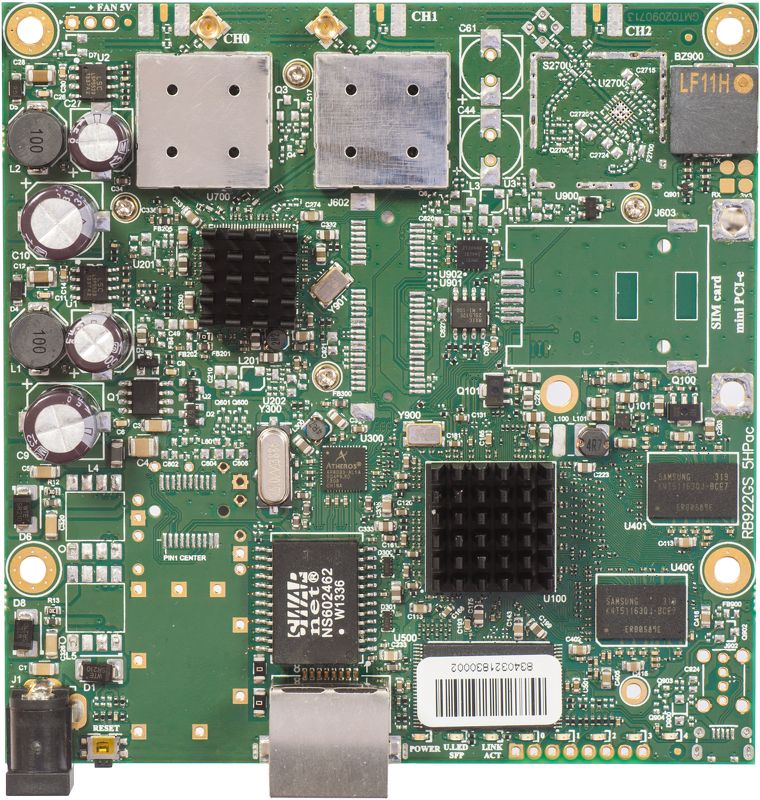

RouterBOARD 911G-5HPacD is our low-cost small form factor CPE board with 802.11ac support. It’s perfect for building low-cost 802.11ac CPE devices, as the list price is only $79. Yet, the device is very powerful- it’s equipped with 720MHz CPU, 128MB RAM, Gigabit Ethernet port, power jack and 802.11ac 5GHz Dual Chain wireless onboard. Comes with RouterOS L3 license.
– RB911G-5HPacD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specifications
| Details | |
|---|---|
| Product code | RB911G-5HPacD |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 720 MHz |
| Dimensions | 105x105mm |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $79.00 |
Powering
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 12 W |
Wireless
| Details | |
|---|---|
| Wireless 5 GHz number of chains | 2 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 27 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
