MIKROTIK ROUTERBOARD - SXT 5 ac - RB/SXTG-5HPacDr2

Sku:1010190090210

SXT 5 ac - RB/SXTG-5HPacDr2
81,61 €

Availability: In stock

  • Buy 5 for 81,27 € each and save 1%
  • Buy 10 for 80,58 € each and save 2%
  • Buy 20 for 80,24 € each and save 2%
  • Buy 50 for 79,89 € each and save 3%

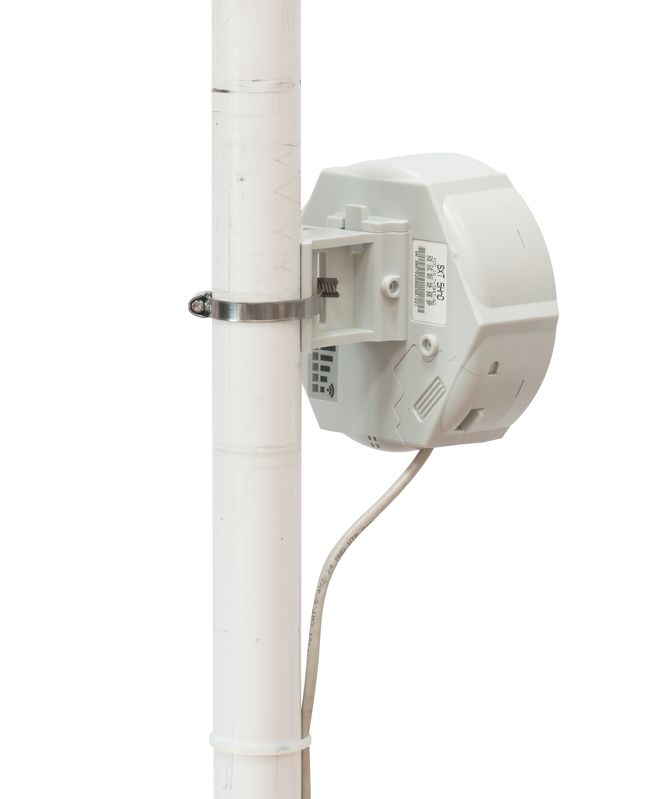

SXT 5 ac

The SXT ac is a new member in our 802.11ac product lineup, currently two models are available — with regular 28 degree antenna, and the SA model with a 90 wide beam- width sector antenna. Also supports 802.11a/n mode and is compatible with all legacy RouterBOARD devices, including Nstream and Nv2 protocols. Both devices come with Gigabit Ethernet.

New products are backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.

Specifications

Details
Product code RBSXTG-5HPacDr2
Architecture MIPSBE
CPU QCA9557
CPU core count 1
CPU nominal frequency 720 MHz
License level 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Suggested price $109.00

Powering

Details
Max Power consumption 12W
PoE in 802.3af/at
PoE in input Voltage 15-60 V
Number of DC inputs 1 (PoE-IN)

Wireless

Details
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11ac
Antenna gain dBi for 5 GHz 16
Wireless 5 GHz chip model QCA9892

Ethernet

Details
10/100/1000 Ethernet ports 1

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Wireless specifications

5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s 31 -96
54MBit/s 28 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72

Ethernet test results

RBSXTG-5HPacDr2 QCA9557 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.2 986.1 234.9 962.2 477.7 244.6
Bridging 25 bridge filter rules 81.2 986.1 118.4 485.0 119.5 61.2
Routing none (fast path) 81.2 986.1 234.9 962.2 408.2 209.0
Routing 25 simple queues 81.2 986.1 158.3 648.4 165.8 84.9
Routing 25 ip filter rules 64.8 786.9 70.4 288.4 60.9 31.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
