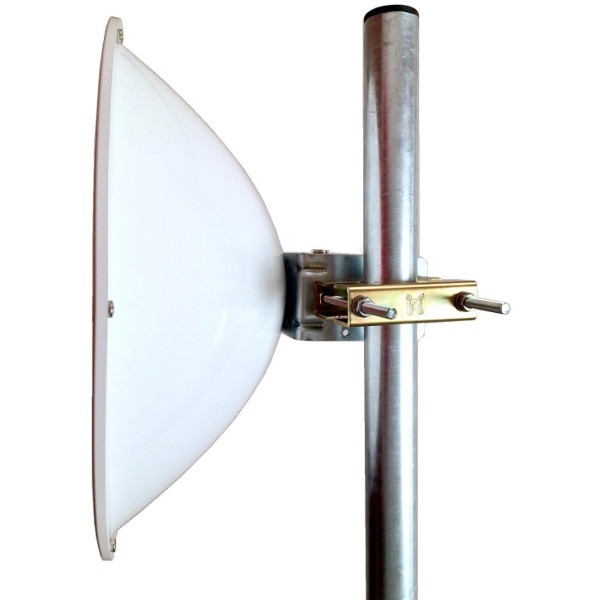

JRC-24DD MIMO (2XPACK)

Sku:1060042024010

Jirous - JRC-24DD MIMO - Dual polarized antenna - Frequency range 4.9 - 6.4 GHz - Port to port isolation ≥ 27 dB - Gain 24.5 ± 1 dBi - VSWR 5.1 - 5.9 GHz ≤ 1.5
219,00 €

Availability: Out of stock

Specification

  • dual-polarized antenna, horizontal/vertical or 2x45° polarization
  • deep dish increases isolation among antennas on a mast
  • new concept with extended frequency band
  • high front to back ratio
  • easy mounting with GentleBOX JR-200 or JR-250 Alu
  • direction link for medium distance or short link in difficult conditions
  • setting elevation (of a gradient) and azimuth has independent adjustment
  • possible to count attainable distance from section of calculation
  • radom (plastic parabola cover) included in the price

Technical parameters

Frequency range

4.9 - 6.4 GHz

Gain

24.5 ± 1 dBi

VSWR 5.1 - 5.9 GHz

≤ 1.5

Front to back ratio

≥ 44 dB

Beamwidth -3 dB

Polarization

linear, horizontal/vertical or 2x45°

Port to port isolation

≥ 27 dB

Connector

Parabola

ø 400 mm - aluminium alloy with baking colour

Cover

UV stabilized plastic ABS

Installation for mast

ø 27 - 74 mm right or left side



The radiator is internally treated by high frequency technology "Hydrophobic coating" which increases resistance against humidity.



Recommended accessories

  • Using with GentleBOX JR-200 and JR-250 Alu we recommend model with R-SMA connectors.
  • Bracket GentleCLIP par for mounting Ubiquiti Rocket M5
  • Pigtail R-SMA/MMCX
  • Pigtail R-SMA/UF.L



Package

  • 2 pcs in carton
  • Size and EAN codes EAN codes

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Barcode No
Applications No
Frequency No
Brand Jirous
