RB450Gx4

Sku:1010190071400

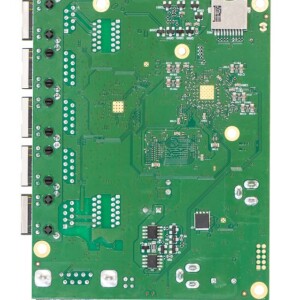

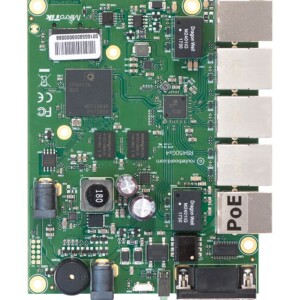

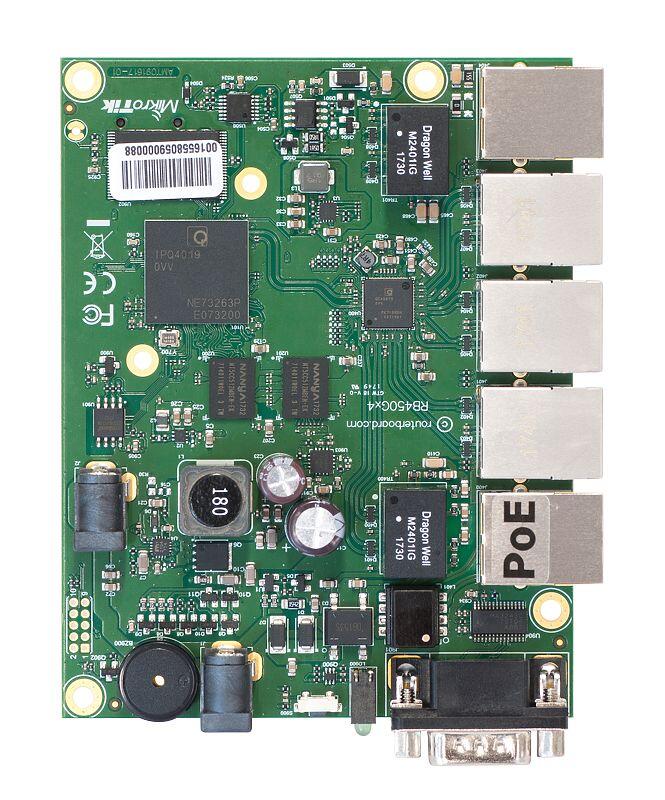

The RB450Gx4 is an Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND memory and a microSD card slot. In addition, it supports full 10 V - 57 V input by two power jacks or PoE (802.3af/ at or passive PoE) and can provide PoE output for Ethernet port #5.

104,38 €

Availability: In stock



It is powered by MikroTik RouterOS. It comes without an enclosure, you are free to use it in your own. The device form factor is identical to our previous RB850 and RB450 series, so you can even use the same enclosures.

The device is powered by a quad core ARM CPU, has 1 GB of RAM and supports hardware IPsec encryption. The device is powered by RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.



Specifications

Details
Product code RB450Gx4
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 90 x 115 mm
License level 5
Operating System RouterOS
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Suggested price $99.00


Powering

Details
PoE in 802.3af/at
PoE out Passive PoE
PoE in input Voltage 12-57 V
Number of DC inputs 3 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V
Max out per port output (input > 30 V) 500 mA
Max out per port output (input < 30 V) 500 mA
Max total out (A) 500 mA
Max power consumption 5 W


Ethernet

Details
10/100/1000 Ethernet ports 5


Peripherals

Details
Memory card type microSD
Serial port RS232


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes



Ethernet test results

RB450Gx4 IPQ-4019 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 162,5 1973.4 469,9 1924.7 1482,6 759.1
Bridging 25 bridge filter rules 162,5 1973.4 339,4 1390.2 344 176.1
Routing none (fast path) 162,5 1973.4 469,9 1924.7 1452,6 743.7
Routing 25 simple queues 162,5 1973.4 468,3 1918.2 473,8 242.6
Routing 25 ip filter rules 162,5 1973.4 235,3 963.8 231,3 118.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results


IPsec test results

RB450Gx4 IPQ-4018 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 37.9 424.5 59 241.7 61.6 31.5
256 tunnels AES-128-CBC + SHA1 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-128-CBC + SHA256 36 403.2 38.5 157.7 39.8 20.4
256 tunnels AES-256-CBC + SHA1 34.4 385.3 37.9 155.2 39.8 20.4
256 tunnels AES-256-CBC + SHA256 34.4 385.3 37.9 155.2 39.8 20.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results





Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.

Additional Information

Barcode No
Applications Indoor
Frequency No
Brand Mikrotik
