RBLtAP-2HnD&R11e-LTE – LtAP LTE kit

139.70

MikroTik – RBLtAP-2HnD&R11e-LTE – LtAP LTE kit – A heavy-duty 2.4GHz access point with extra miniPCI slot, three SIM slots, GNSS support (GPS, GLONASS, BeiDou, Galileo) and LTE modem for International bands 1,2,3,7,8,20,38 and 40

Out of stock

Description

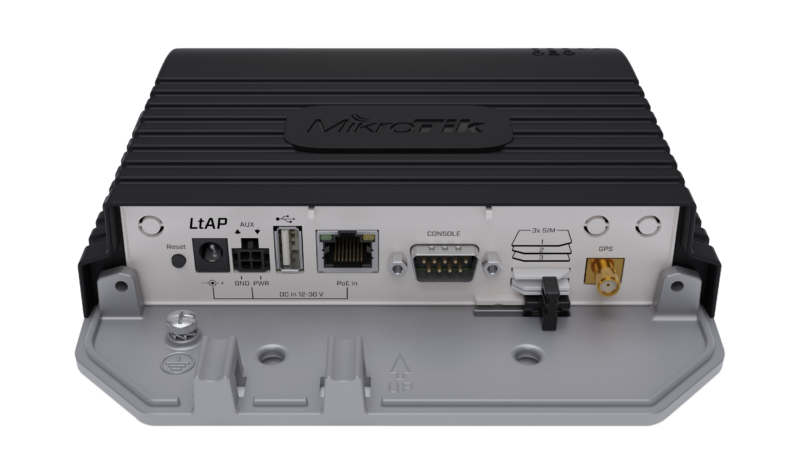

Introducing LtAP LTE kit– a heavy-duty 4G (LTE) access point with GPS support.

The new LtAP LTE kit is a compact 4G (LTE) capable weatherproof wireless access point – perfect for busy urban environment or off-the-grid outdoors networking. It has a built-in cellular modem that supports 4G (LTE) connectivity – no need for additional devices, it works out of the box.

Its high power 2.4 GHz 802.11b/g/n wireless capability provides secure access to LTE network from your phone or any other wireless device with up to 150 Mbps download speed. You can also use a Gigabit Ethernet LAN port for your wired devices. There are several power options – DC jack, POE-in and automotive.

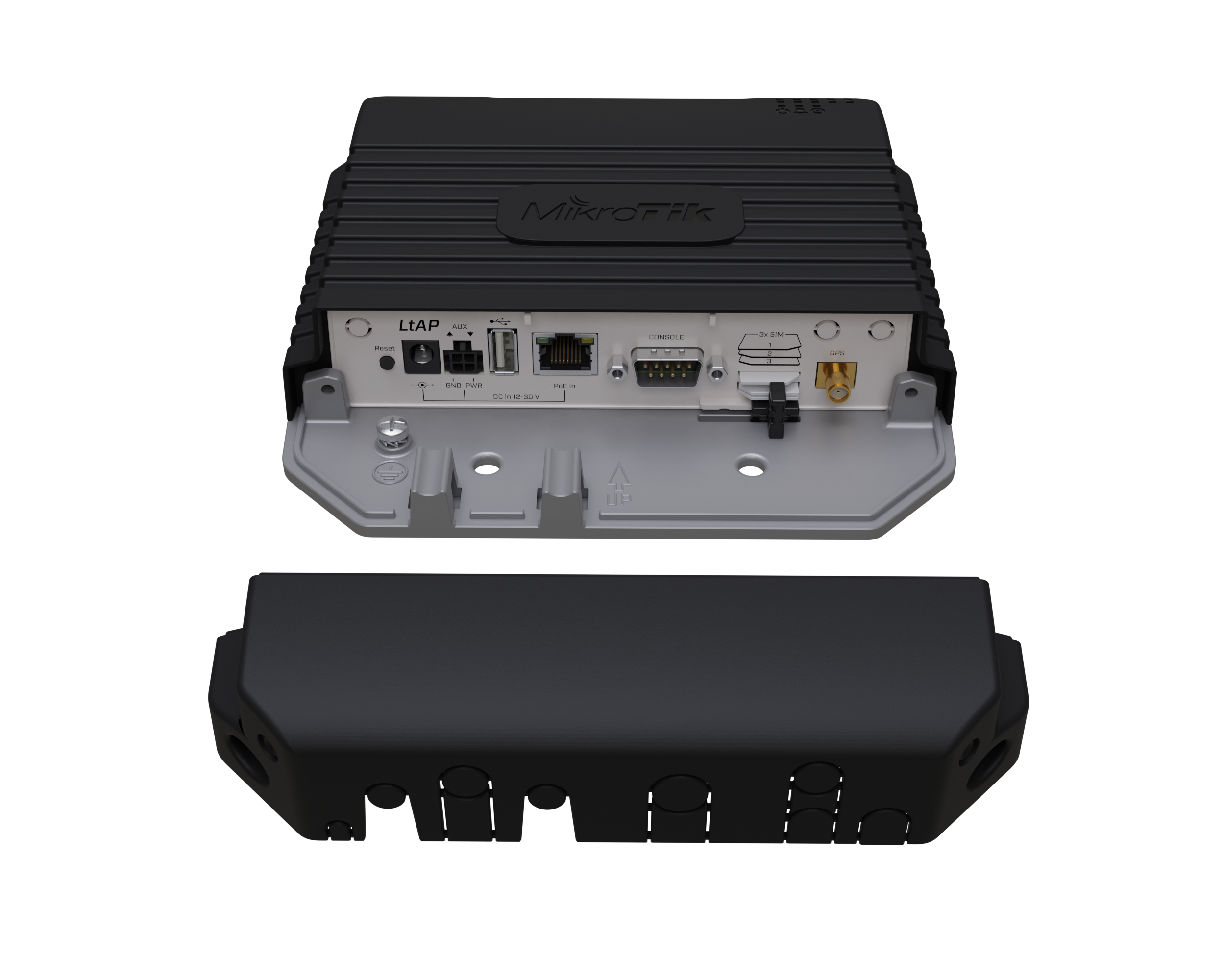

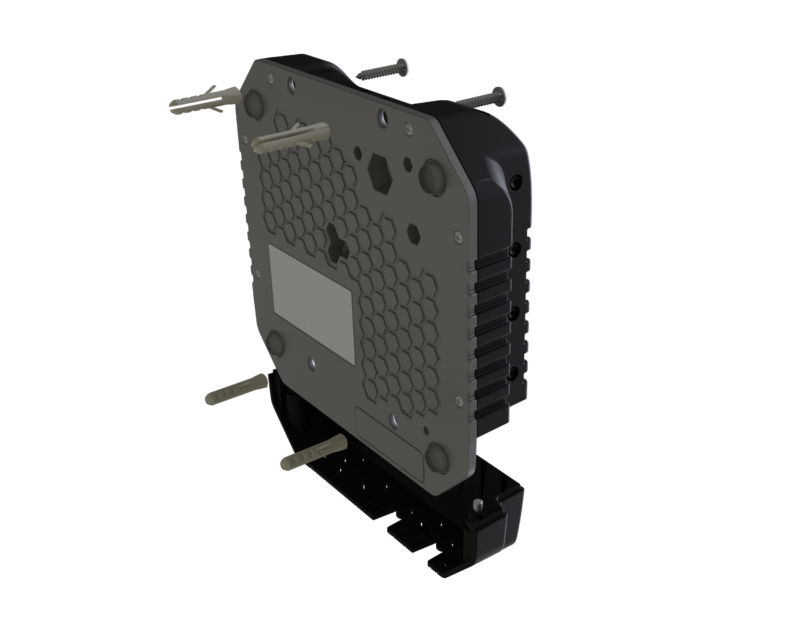

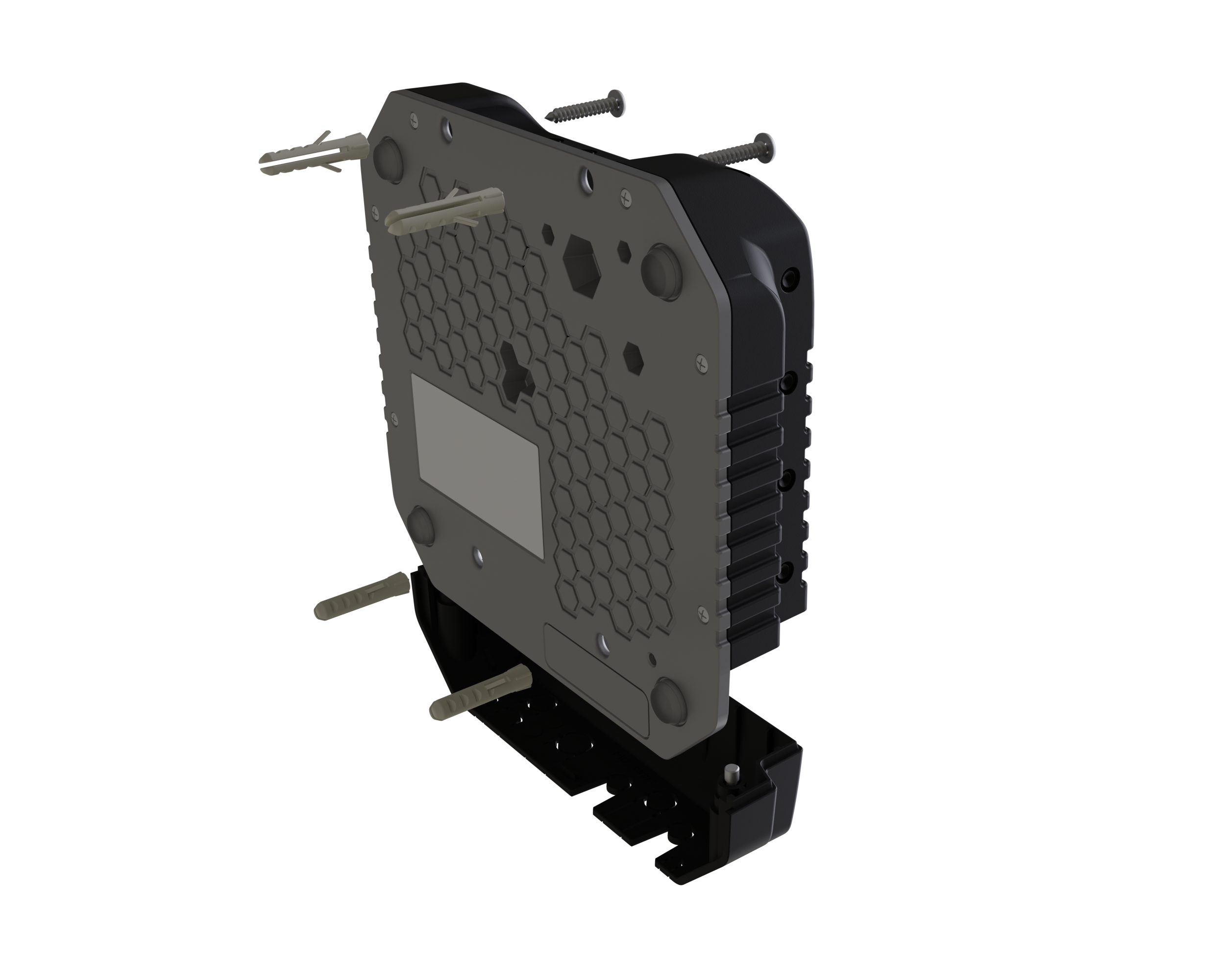

The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environment. LtAP can handle any temperature from -40 C‎° to +70 C‎°. It is a perfect solution for tracking vehicles in real time. We have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saves your time and money worldwide!

The unit comes with an extra miniPCIe slot, offering many expansion options. For example, you can install a second LTE modem for redundancy or a 5GHz interface to have dual concurrent 2.4 GHz / 5GHz AP + LTE. Another miniPCIe slot is already populated with the LTE modem.

LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.

RBLtAP-2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.

The new LtAP LTE kit is more than an access point – it is what you need it to be wherever you need it to be.



Specifications

Details
Product code RBLtAP-2HnD&R11e-LTE
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
License level 4
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Suggested price $179.00


Powering

Details
PoE in Passive PoE
PoE in input Voltage 12-30 V
Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage 12-30 V
Automotive input Voltage 12-30 V
Max power consumption 24 W
Max power consumption without attachments 12 W


Mobile

Details
2G Category Class12
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz)


Wireless

Details
Wi-Fi generation 4


Ethernet

Details
10/100/1000 Ethernet ports 1


Peripherals

Details
Number of SIM slots 3 Modem (Mini SIM)
MiniPCI-e slots 2
Serial port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1


Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes


Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -96
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73


Additional information

Weight 0.0200 kg
Brand

Mikrotik

Features (Beta)
Frequency
Applications
Color

White

Manufacturer

MikroTik
