SD59430U-HNI

SKU: 9080011111000 Categories: ,

770.26

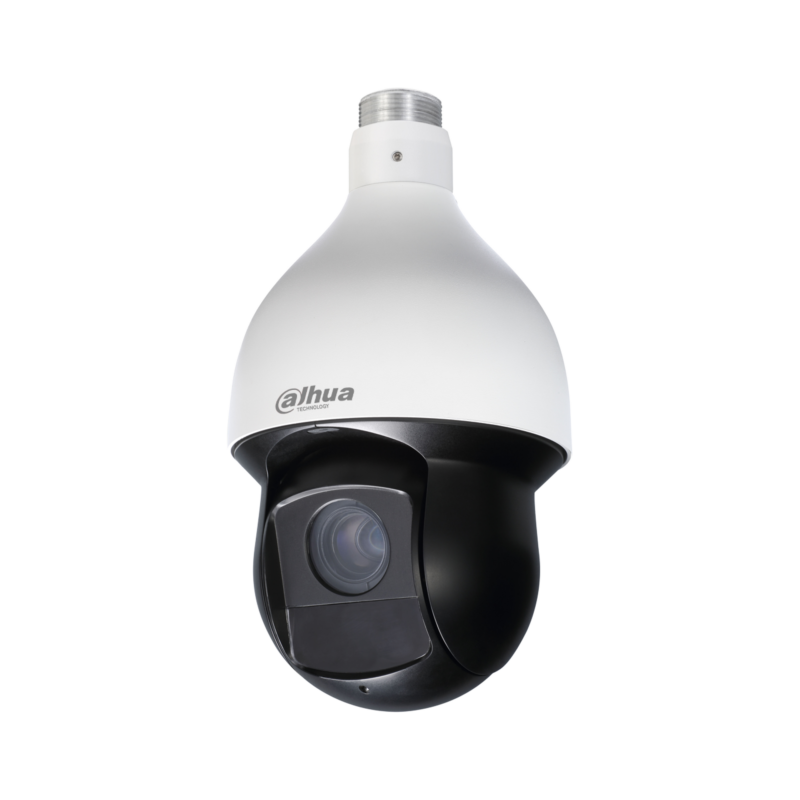

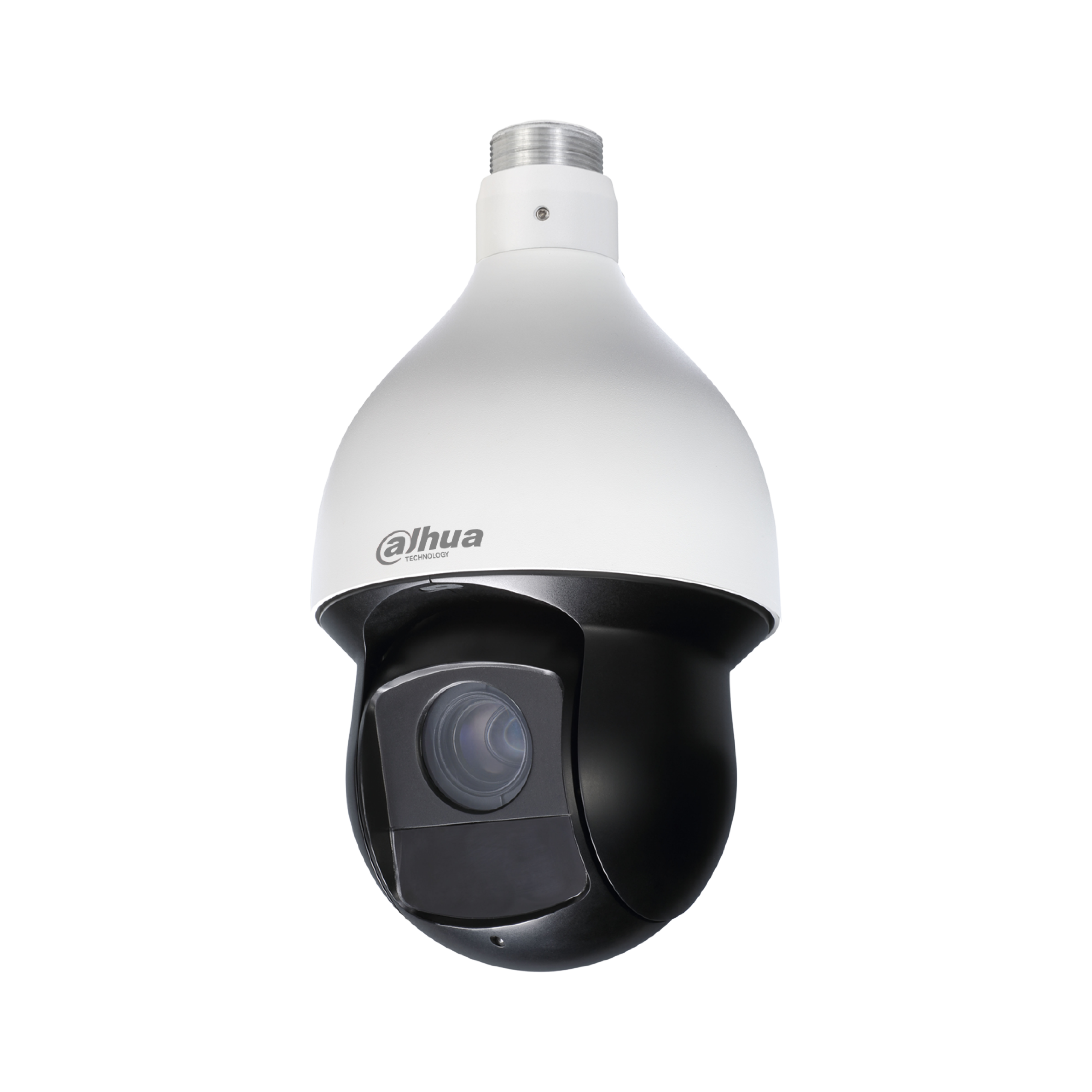

Dahua – PRO SERIES – 4MP 30x IR PTZ Network Camera
> 1/3” 4Megapixel CMOS
> Powerful 30x optical zoom
> H.265 Encoding
> Max. 25/30fps@4M/3M, 25/30/50/60fps@1080P
> Auto-tracking and IVS
> Support PoE+
> IR distance up to 100m
> IP66

Out of stock

Description

System Overview

Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera can provide large monitoring range and great detail. The camera has very excellent low light performance due to adopting the latest starlight technology. The camera is equipped with smooth control, high quality image and good protection, which make it can meet most of the requirements of video surveillance applications.

Functions

Starlight Technology For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Wide Dynamic Range

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Auto-tracking

This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

PFA Technology

PFA technology has innovatively introduced new methods of judgment to ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms. PFA ensures clarity of the image throughout the process of zooming and shortens focus time. The realization of PFA technology substantially improves user experience and increases product value.

Environmental

Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -40 °C to +60 °C (-40 °F to +140°F) with 95% humidity. The camera complies with the IK10 Vandal Resistance impact rating. Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications.

Protection

The camera allows for ±10% input voltage tolerance, suitable for the unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Interoperability The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.



Camera

Image Sensor

1/3” CMOS

Effective Pixels

2592(H) x 1520(V), 4 Megapixels

RAM/ROM

1024M/128M

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/30,000s

Minimum Illumination

Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)

S/N Ratio

More than 55dB

IR Distance

Distance up to 100m (328ft)

IR On/Off Control

Auto/Manual

IR LEDs

4

Lens

Focal Length

4.5mm~135mm

Max. Aperture

F1.6 ~ F4.4

Angle of View

H: 60° ~ 2.2°

Optical Zoom

30x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

2700m(8858ft)

1080m(3543ft)

540m(1772ft)

270m(886ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°

Manual Control Speed

Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s

Preset Speed

Pan: 400° /s; Tilt: 300° /s

Presets

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly



Auto Tracking

Support

IVS

Tripwire, Intrusion, Abandoned/Missing

Advanced Intelligent Functions

Face Detection, Heat Map

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

4M(2592×1520)/3M(2304×1296)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

Main stream4M/3M(1~25/30fps), 1080P/1.3M/ 720P(1~50/60fps)

Sub stream1: D1/CIF(1 ~ 25/30fps)

Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.265/H.264: 448K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / WDR (120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

Ultra DNR (2D/3D)

Motion Detection

Support

Region of Interest

Support

Electronic Image Stabilization (EIS)

Support

Defog

Support

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2

Network

Ethernet

RJ-45 (10Base-T/100Base-TX)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,

DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

20 users

Edge Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android



Certifications

Certifications

CE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface

Video Interface

N/A

RS485

N/A

Audio I/O

1/1

Alarm I/O

2/1

Electrical

Power Supply

AC24V/3A(±10%), PoE+(802.3at)

Power Consumption

13W,23W (IR on)

Environmental

Operating Conditions

-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH

Ingress Protection

IP66

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

Φ186(mm) x 309(mm)

Net Weight

3.9kg(8.60lb)

Gross Weight

7.2kg(15.87lb)
