TW-SPPOE-RACK connector reverse

TW-SPPOE-RACK connector reverse

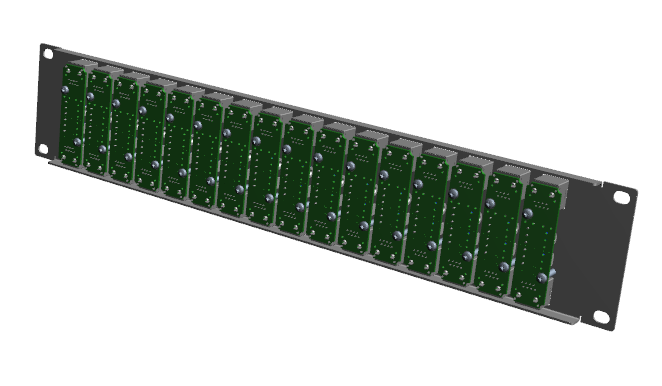

Barra 2 unit da rack per 16 overvoltage and sourge protection.

Please advise "TW-SPPOE-V SCARICATORE PER RACK CONNECTOR REVERSE" not included, add from this link:

http://www.wispmax.com/tw-sppoe-v-scaricatore-per-rack-connector-reverse.html

You can add up to 16 pcs.

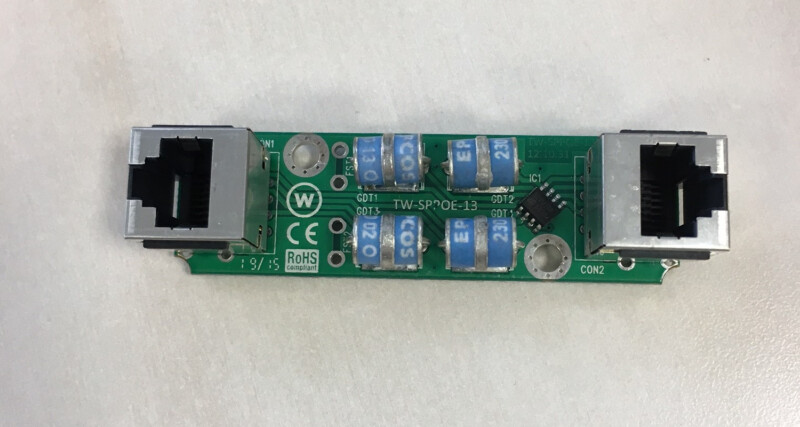

TW SPPOE-13 Gigabit Ethernet CONNECTOR REVERSE

• Three-Stage protection
• Failsafe architecture
• Power-Over-Ethernet (PoE) compatible
• Supports normal and reverse polarity PoE
• Power and Signal line protection
• Common mode protection & Line to Ground differential
• High-energy , High-speed capabilities
• Low shunt capacitance
• All 8-pins protected

TW SPPOE-13 Gigabit Ethernet

Surge Protection

The SPPOE-13 will protect any Ethernet device from surge events (electrostatic discharges, voltage spikes, etc.) that may cause overvoltage on the cable.
This unit is perfectly compatible with 802.3af standard PoE systems and with reverse polarity systems.

The SPPOE-13 is especially suitable for appliances installed in unprotected sites, such as isolated towers and long cable runs.
Its use is advised with appliances that must guarantee high reliability, such as devices installed in difficult locations or when the grounding of the appliances is not done correctly.

Three stage protection

Being constituted of surge protectors, power line protectors and a system that avoids peak currents, the SPPOE-12 offers maximum protection to your appliances and its very small.
Great care has been taken in shielding the unit and in defining the data line path in order to avoid packet loss even when the packets are quite large (up to 64.000 bytes).
In fact, this device is cat. 5E compliant up to Gigabit Ethernet.

The SPPOE-13 is CE compliant and is certified by IMQ according to the IEC61000-4-5 regulation up to 6000 Volts. Its use is permitted with medical equipment.

Benefits

• PoE Power line protection
• Resistance to at least 300 atmospheric discharges with current higher than 200 Ampere and up to 1 millisecond.
• Resistance to at least 10 atmospheric discharges with current higher than 20 thousand Ampere and up to 20 microseconds.
• Data line protection
• Independent protection system for each data line
• Thanks to the double stage protection system, this device has no limitation of durability for peak discharges up to 50Watts.
• Output impulses always lower than 150Volts (certified)
• Load peak current limitation system
• No performance loss on local network: unlike other similar devices, this surge protector does not cause any packet losses when connected to the Ethernet cable, even if the cable is very long.
• All components have a high resistance to extreme temperatures (-40; +90 C)
• CE Tested and certified. Tested by IMQ on long impulses at 6000 Volts
• A Test Report under critical conditions is available upon request.

Installation

For a correct installation we suggest to mount the surge protector on the mast or on the tower, right under the appliance that must be protected. Connect both the appliance and the surge protector to the ground.
Grounding the surge protector is very critical and it must be set accurately: keep the ground cable as short as possible between the base of the device and the equipotential spot.
The SPPOE-13 can also be mounted into an outdoor weatherproof enclosure.
It may be used also to protect any PoE devices, such as IP cameras, VoIP telephones, Access Points, etc.
