UBiQUiTi AIRGATEWAY – AirGateway
airGateway™
airMAX®WISP Customer Access Point
The airGateway™is an airMAX®WISP customer Wi-Fi solution. It simultaneously connects indoor client devices and powers the outdoor airMAX CPE.
Convenient Customer Wi-Fi
The airGateway™seamlessly bridges airMAX®connectivity to Wi-Fi for client devices at the customer’s location.
Remote Management
Use the airOS®Configuration Interface to provision the airGateway™, monitor its configuration and restrict/enable customer management.
Sleek Mechanical Design

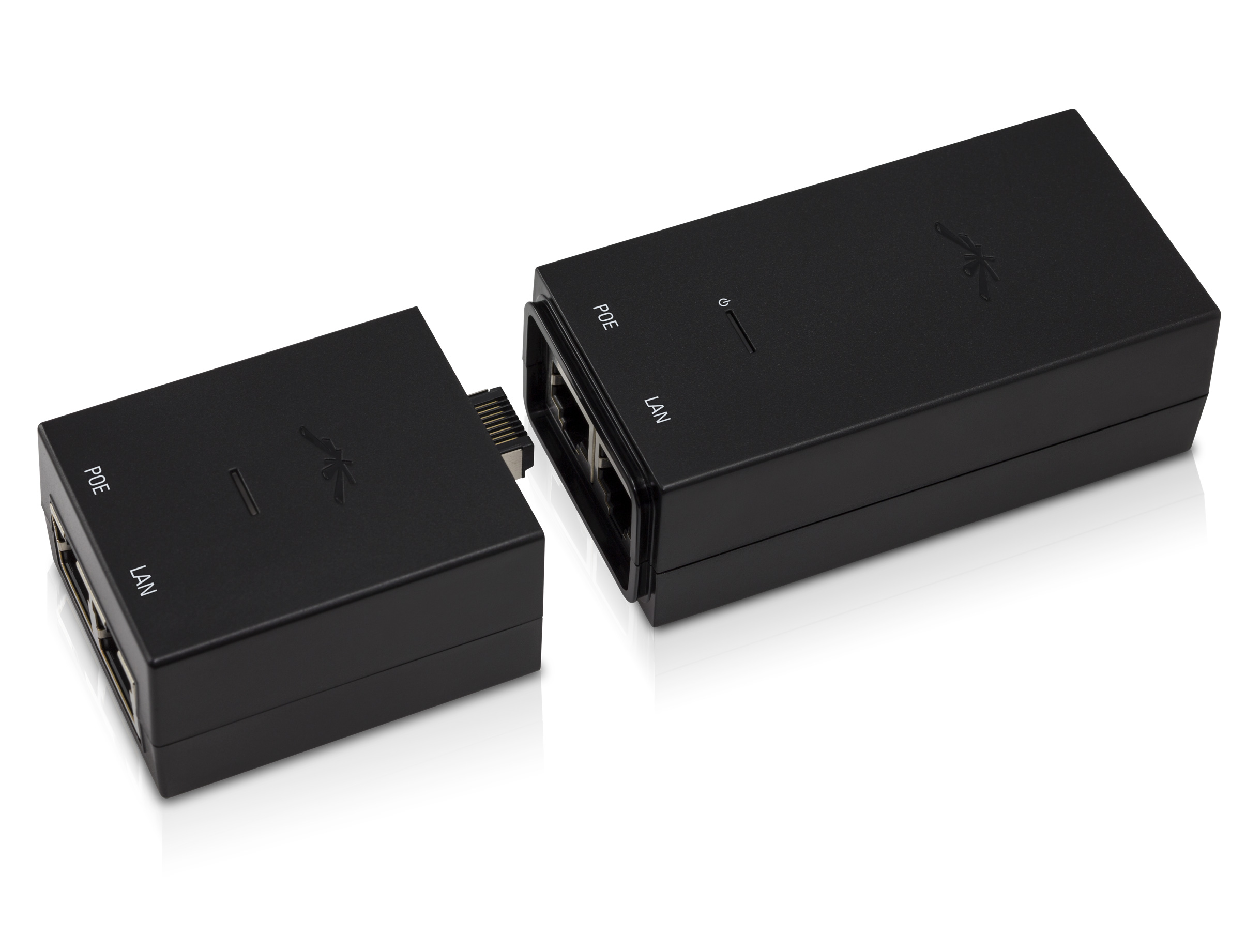

The airGateway™features an innovative design that interlocks with an existing airMAX®PoE Adapter.
High-Performance Wi-Fi
Designed for performance and reliability, the airGateway™delivers Wi-Fi connectivity with 99.9% uptime.
Compact Form Factor
The airGateway™is available in two models: the standard model with an internal antenna and the airGateway-LR model with an external, high-gain antenna for extended range.
Installing the airGateway™for Indoor Wi-Fi
Model Comparison
 airGateway
|
 airGateway-LR
|
|
|---|---|---|
| Frequency | 2.4 GHz | 2.4 GHz |
| Antenna | (1) Internal | (1) External |
| Throughput | 100+ Mbps | 100+ Mbps |
| Range | 50 m | 100 m |
Overview
The airGateway™ is an affordable product with a compact form factor. It simultaneously connects indoor client devices and powers the outdoor CPE (Customer Premises Equipment).
The airGateway is available in two different models: the airGateway, which is the standard model with an internal antenna, and the airGateway‑LR, which includes an external antenna for extended range.
In the diagram on the right, the airGateway supports multiple functions:
• Acts as an indoor wireless device connecting multiple wireless clients
• Connects to a switch to support wired clients
• Powers the airMAX CPE on the roof Network Modes
Network Modes
The airGateway can operate in any of these network modes to meet the needs of your network:
• SOHO (Small Office/Home Office)Router
• Router
• Bridge
Wireless Modes
The airGateway supports these wireless modes to fulfill your wireless requirements:
• Access Point mode to function as the center of your wireless network
• Station mode to extend your wireless network
Such versatile functionality makes the airGateway extremely convenient and economical to deploy.
Power Options
The airGateway is compatible with Ubiquiti PoE Adapters featuring 24V, 0.5A or 15V, 0.3A.
ESD/Surge Protection
The airGateway provides an additional ±24kV of Ethernet isolation for built-in protection that lessens the risk of ESD or surge damage to your devices.
